Boiler Tubes

A standard boiler tube package containing 10 pipes made from carbon or high alloy steel.

We have been involved in trials for phased array in lieu of radiography and have designed a  range of boiler tube specimens to help in the training and examination of technicians and equipment.

Each boiler tube measures 50mm (OD) x 5mm (WT) and includes a range of flaws listed in the BS code for boiler tube inspection.

These packs can also be customized in terms of boiler tube pipe pack size, material size, tube diameter, tube wall thickness or the type of flaws you require.

Our boiler tubes are recommended for:

  • Training and practice prior to qualifications on:
    – Flaw detection
    – Flaw sizing
    – Flaw interpretation

We have a choice of two materials for our boiler tubes:

  • Carbon steel
  • High alloy steel

Our boiler tubes are suitable for the following methods:

  • Phased array
  • Radiography

Each document package contains:

  • CAD generated as-built drawing
  • Manual UT and MT/PT report
  • Material certificates
  • Weld log and consumable certificates
  • QA release note

We have the following optional extras available:

  • Phased array report
  • Radiographs
  • Relevant calibration block(s)

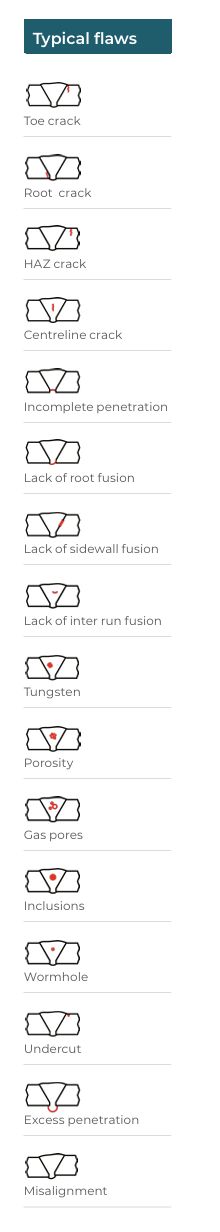

We can manufacture a range of commonly occurring flaws specific to each boiler tube. Examples include:
