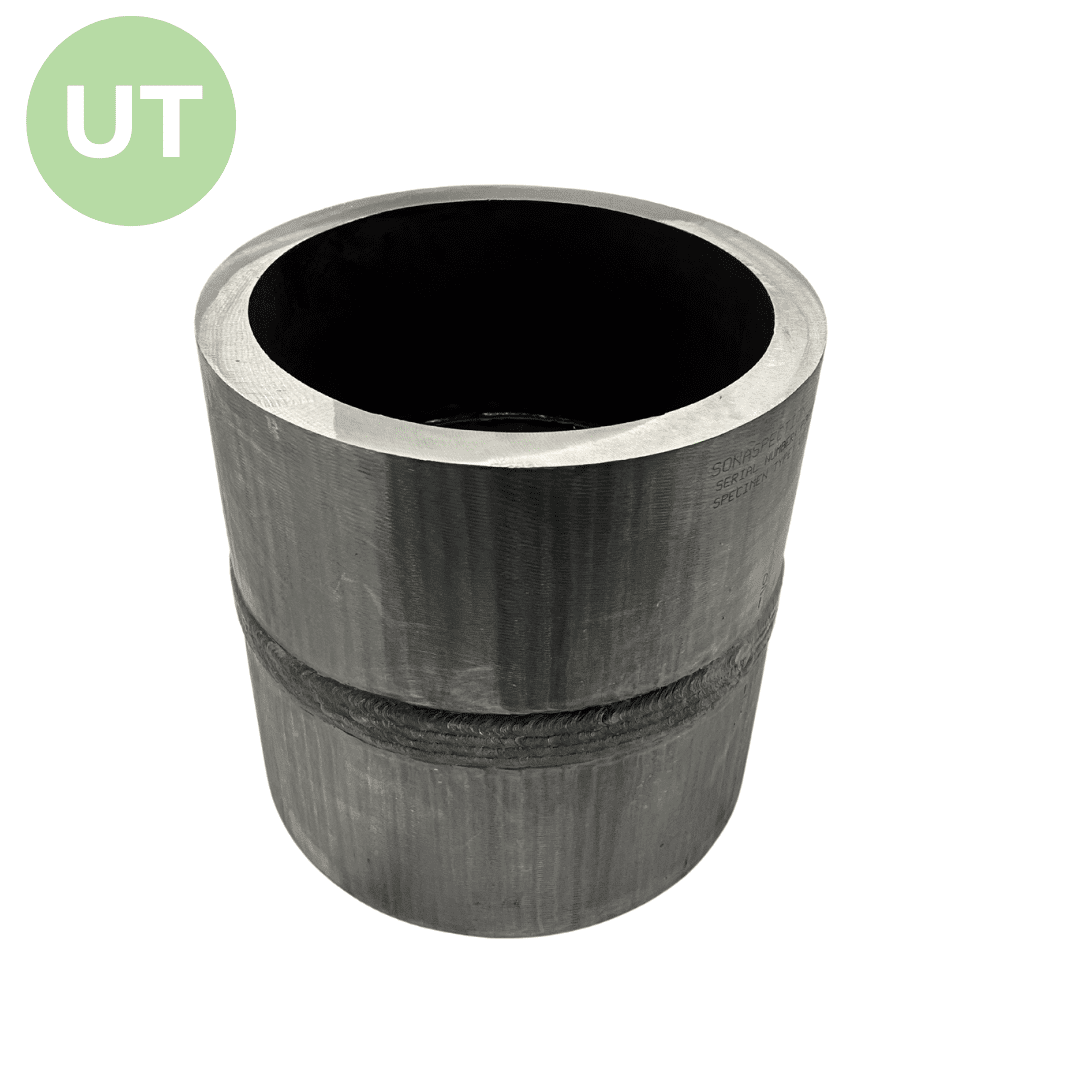

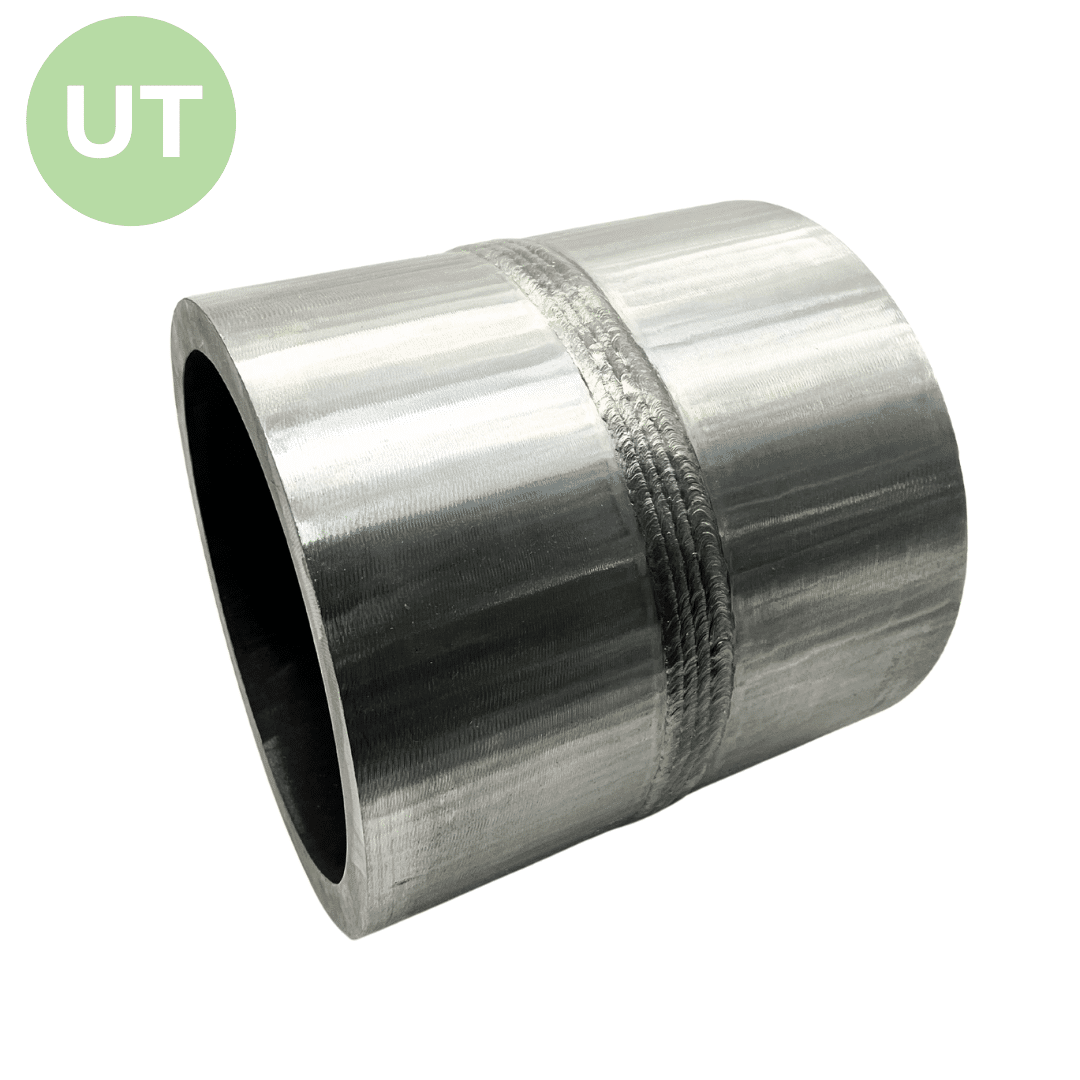

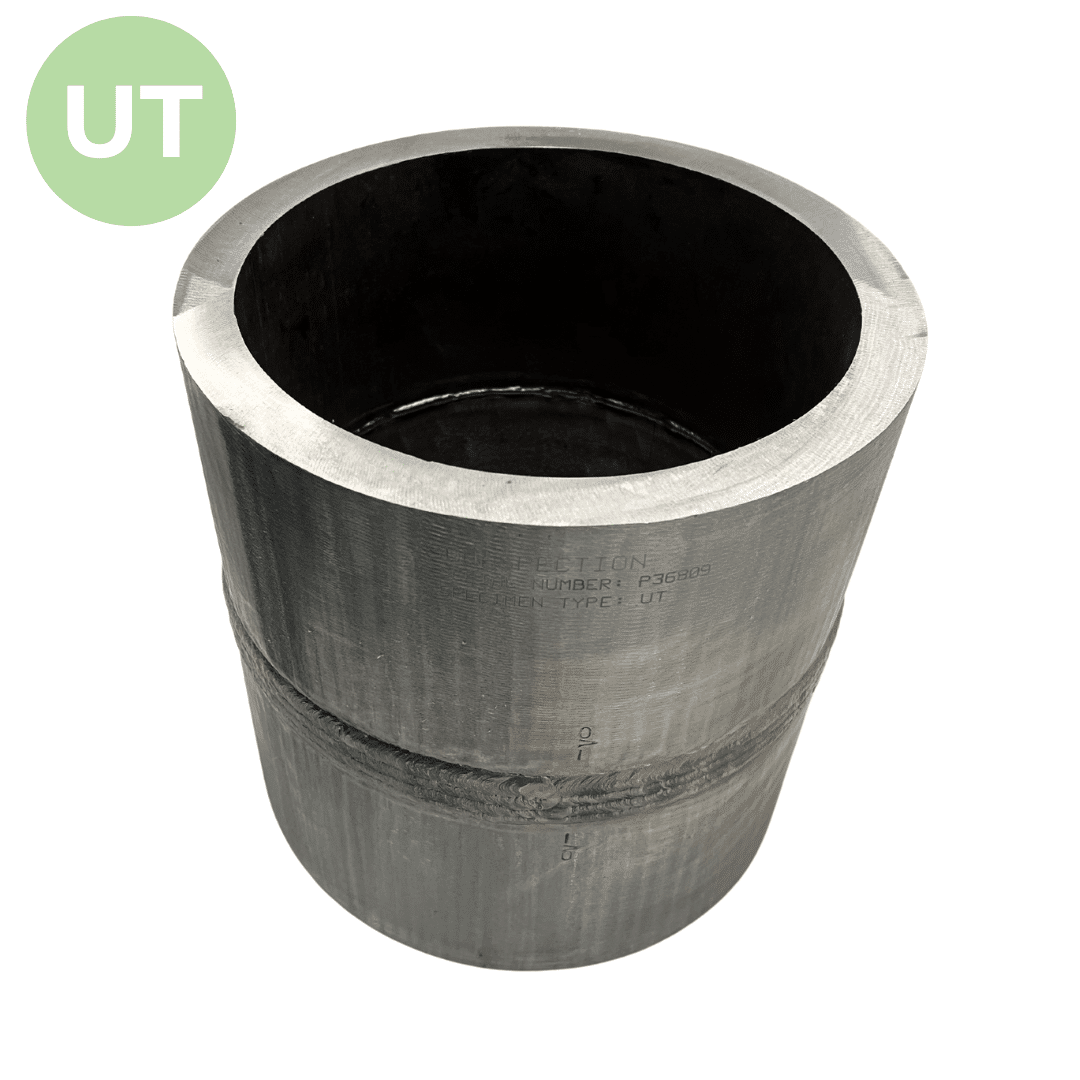

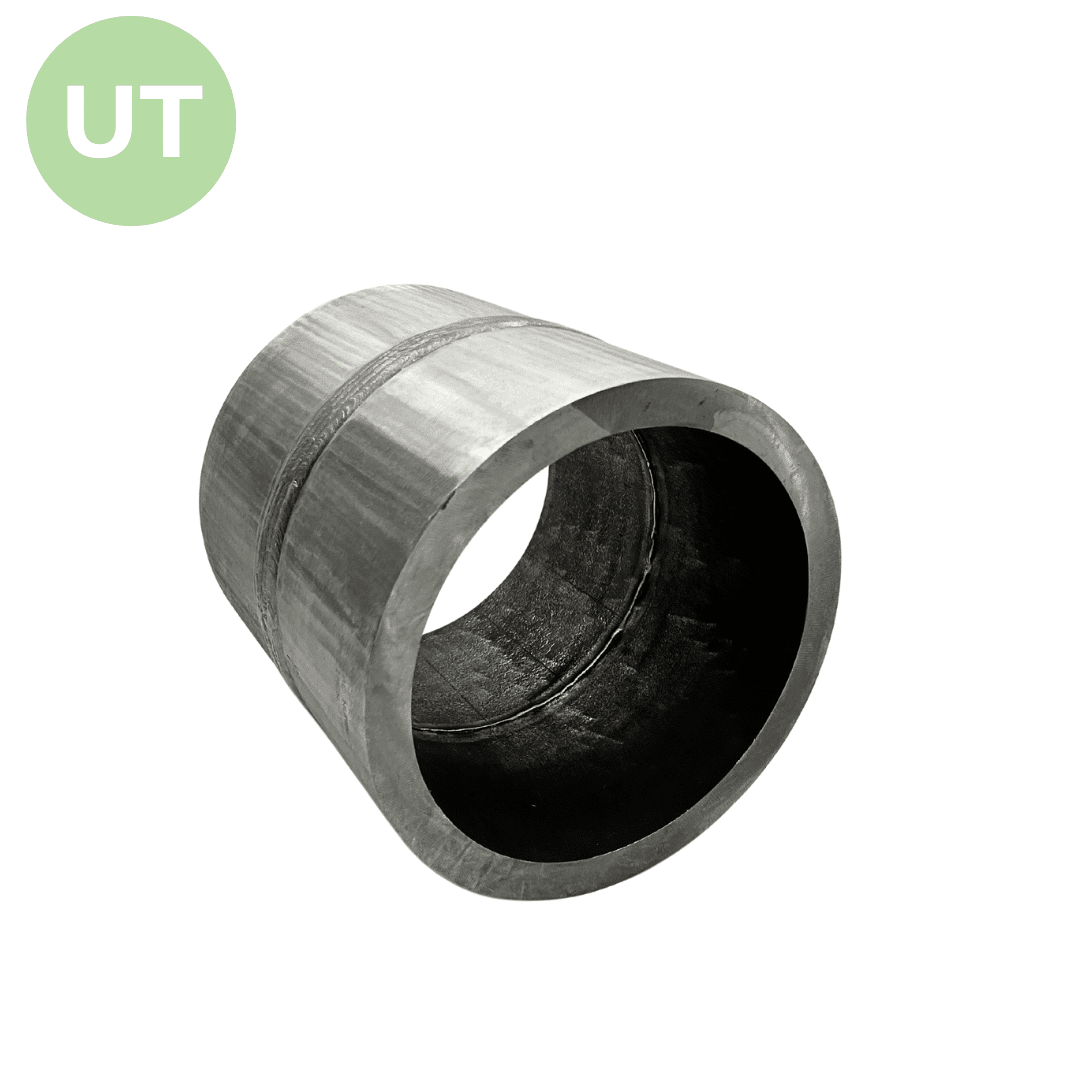

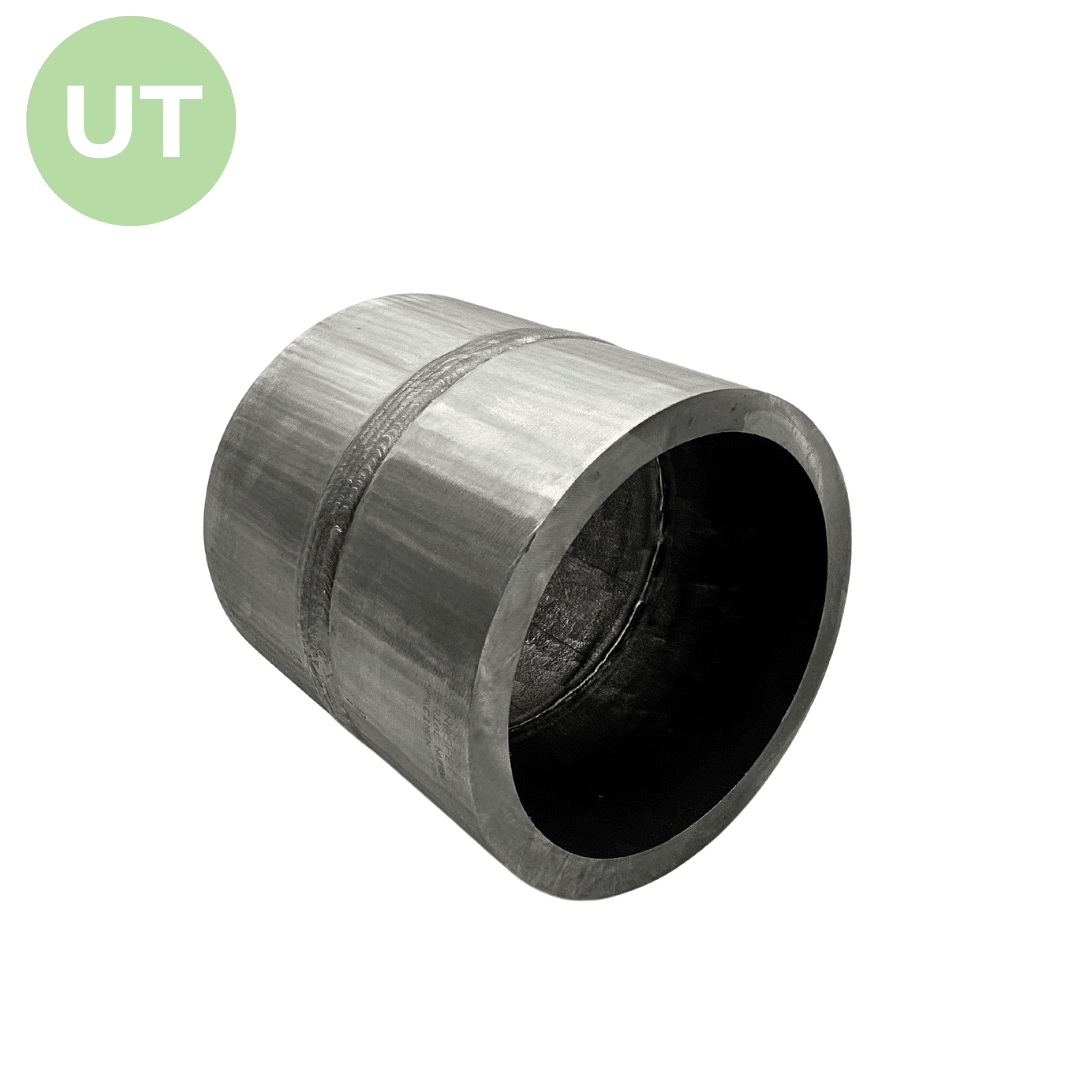

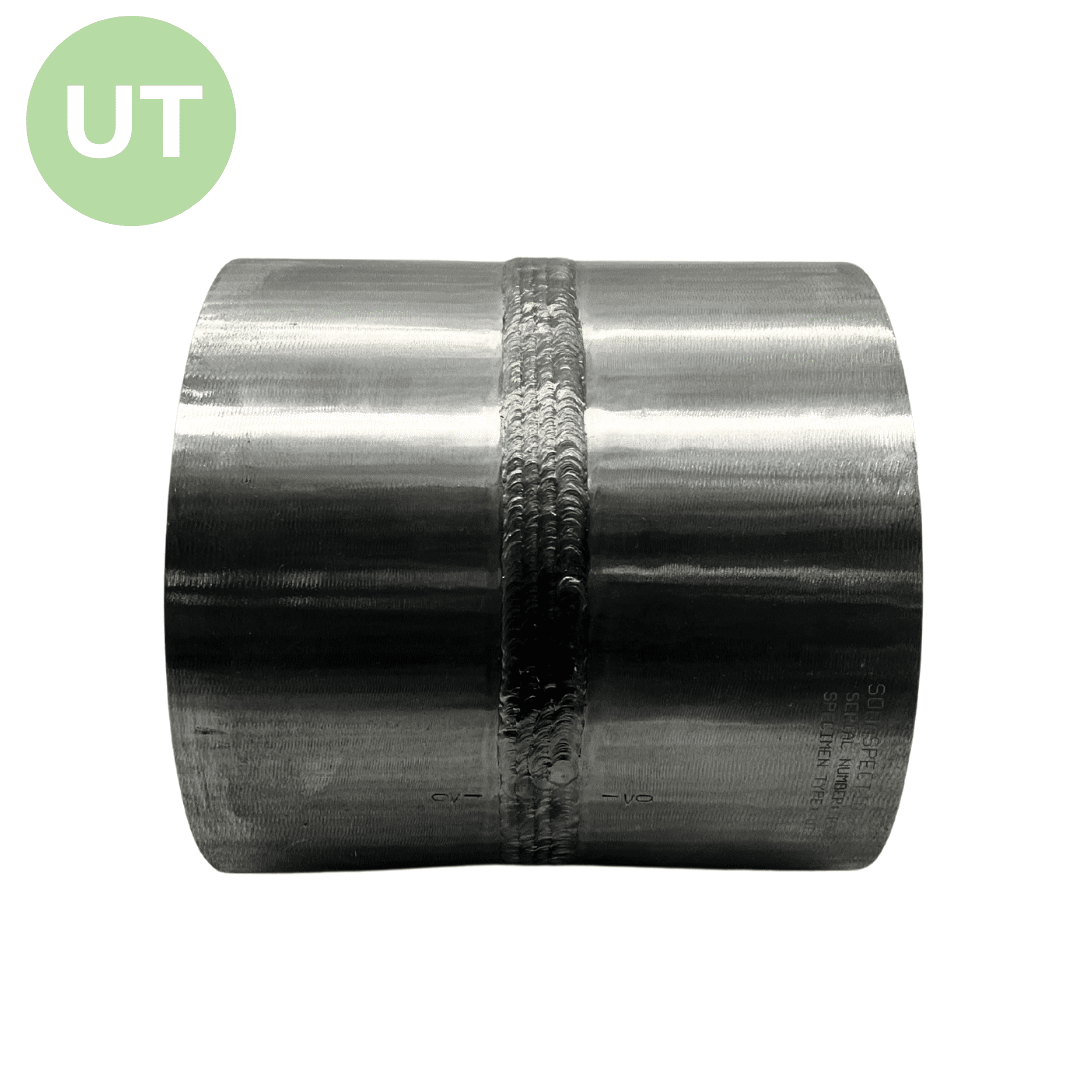

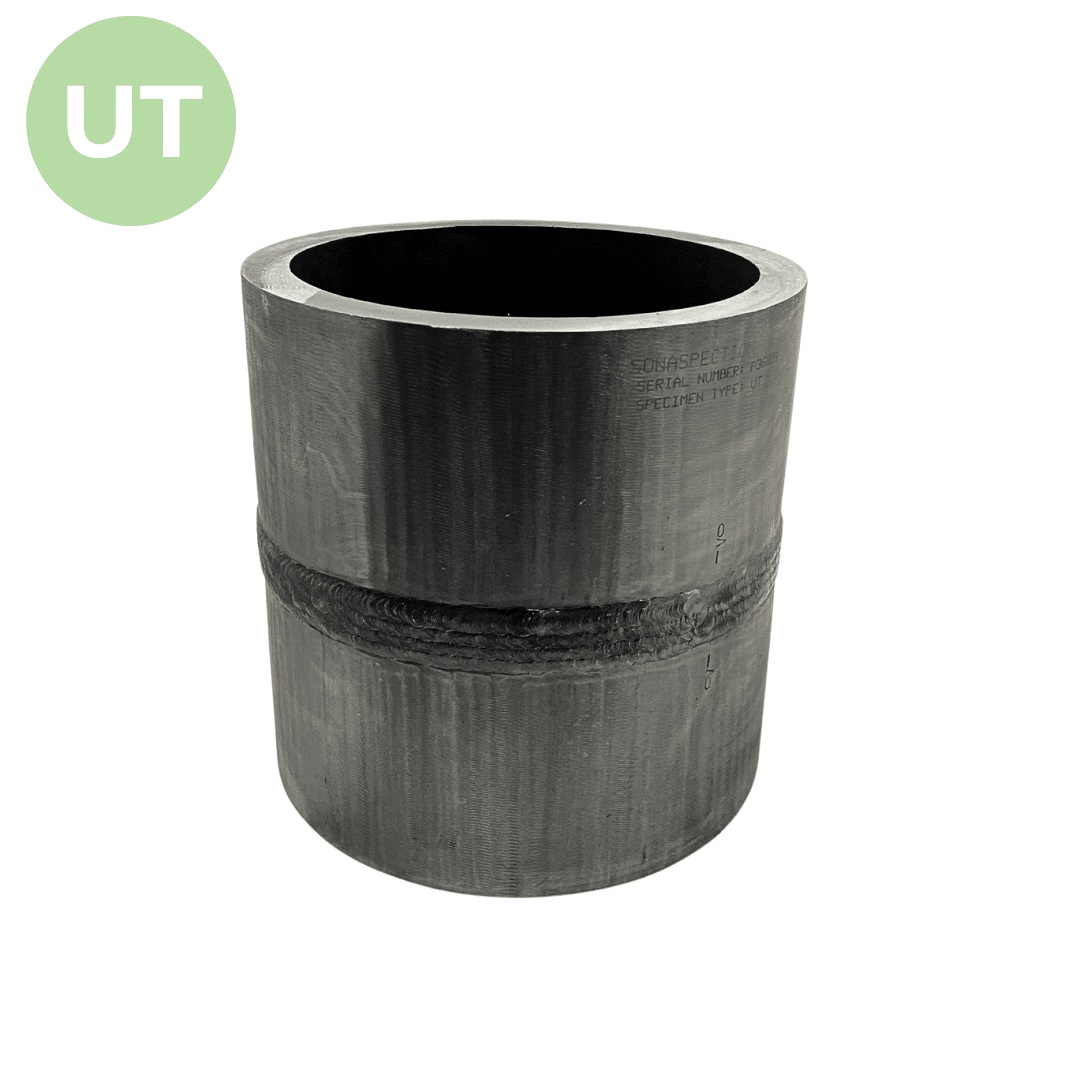

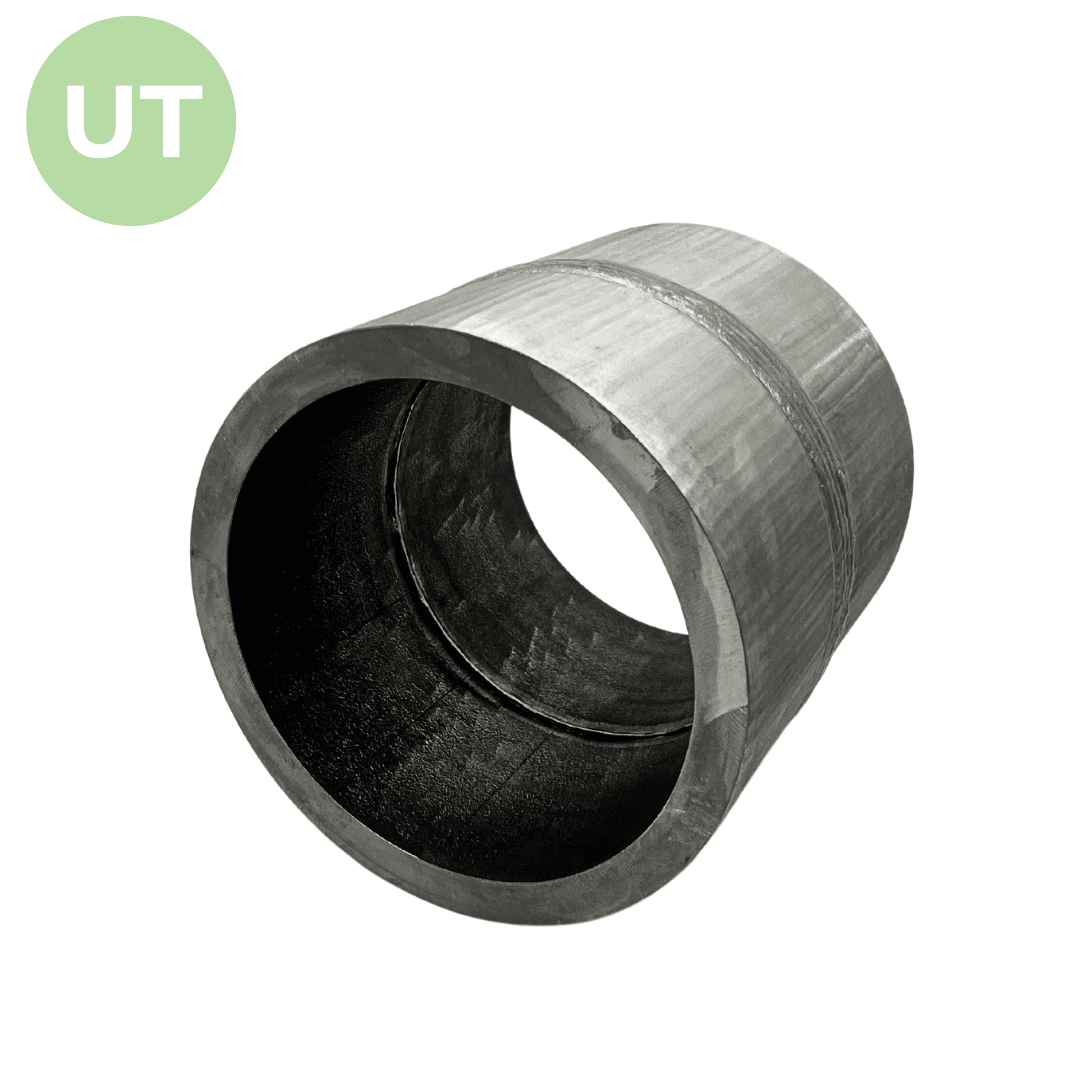

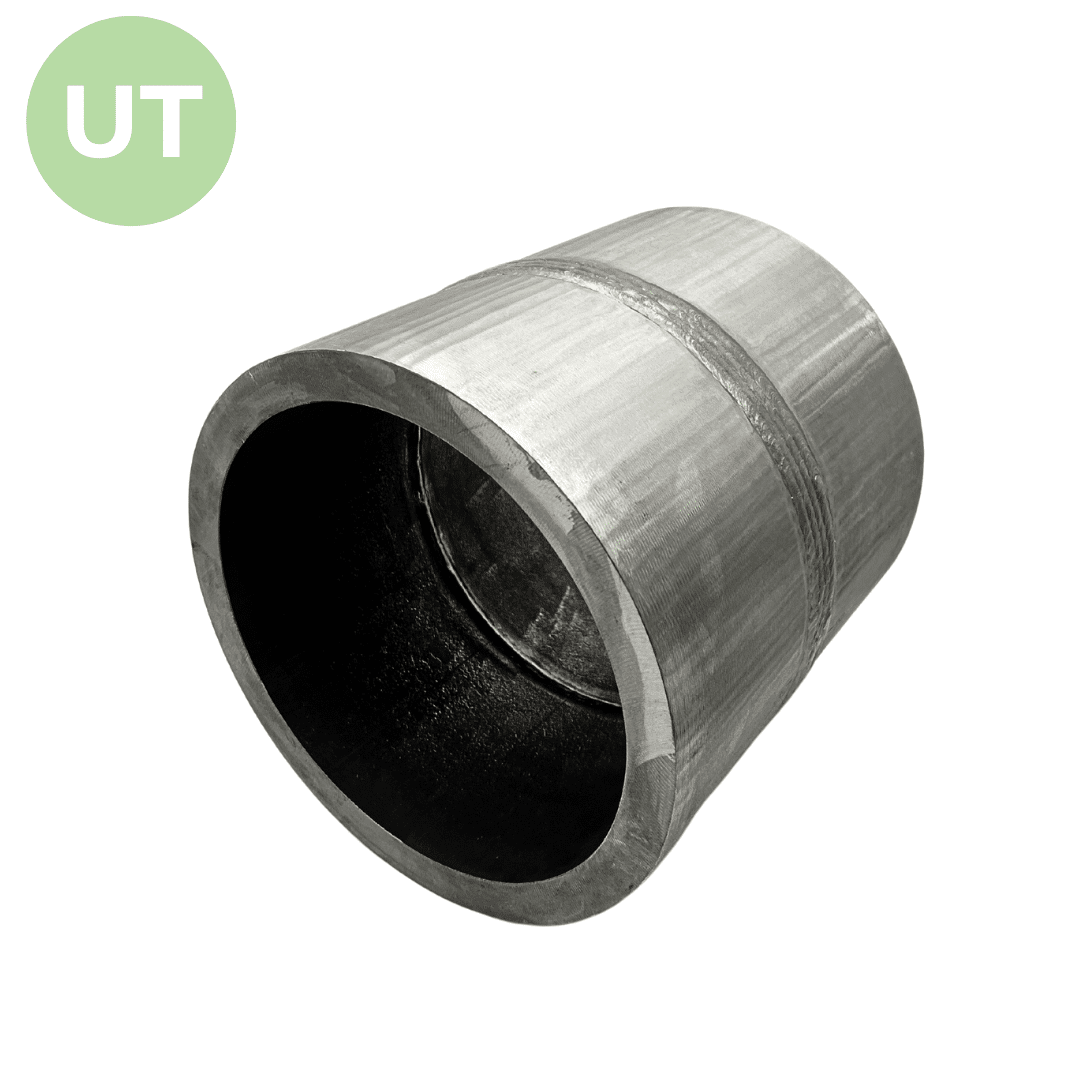

Ultrasonic testing – Pipe

Flawed pipe specimen designed and manufactured to meet the requirements of all known internationally recognized qualification programs, such as ASNT, ACCP, API and BS EN ISO 9712.

Each specimen contains two to four different flaw types.

Recommended for:

  • Advanced training and practice prior to qualifications in flaw detection, sizing, interpretation
  • Realistic size welds
  • Common weld geometries

Each specimen is:

  • Uniquely numbered
  • Supplied with NDE reports
  • Supplied with acceptance/rejection criteria



uc-20

$985.00$2,400.00

Ultrasonic testing – Pipe

$985.00$2,400.00

Specification

Product dimension and Weight

UC-20 – Pipe – 3” Dia. x 0.5” WT x 12” – Weight 15lbs

UC-21 – Pipe – 6” Dia. x 0.5” WT x 12” – Weight 30lbs

UC-22 – Pipe – 6” Dia. x 1” WT x 15” – Weight 62lbs

UC-23 – Pipe – 8” Dia. x 0.5” WT x 12” – Weight 39lbs

UC-24 – Pipe – 8” Dia. x 1” WT x 12” – Weight 82lbs

UC-25 – Pipe – 12” Dia. x 0.5” WT x 12” – Weight 59lbs

UC-26 – Pipe – 12” Dia. x 1” WT x 12” – Weight 122lbs

Material Carbon steel
Method  Ultrasonic testing

Custom specimen designs, material types and flaw locations are available. Secure specimens for examinations also available, please contact us for more details.
