Ultrasonic testing – Plate

$765.00 – $1,185.00

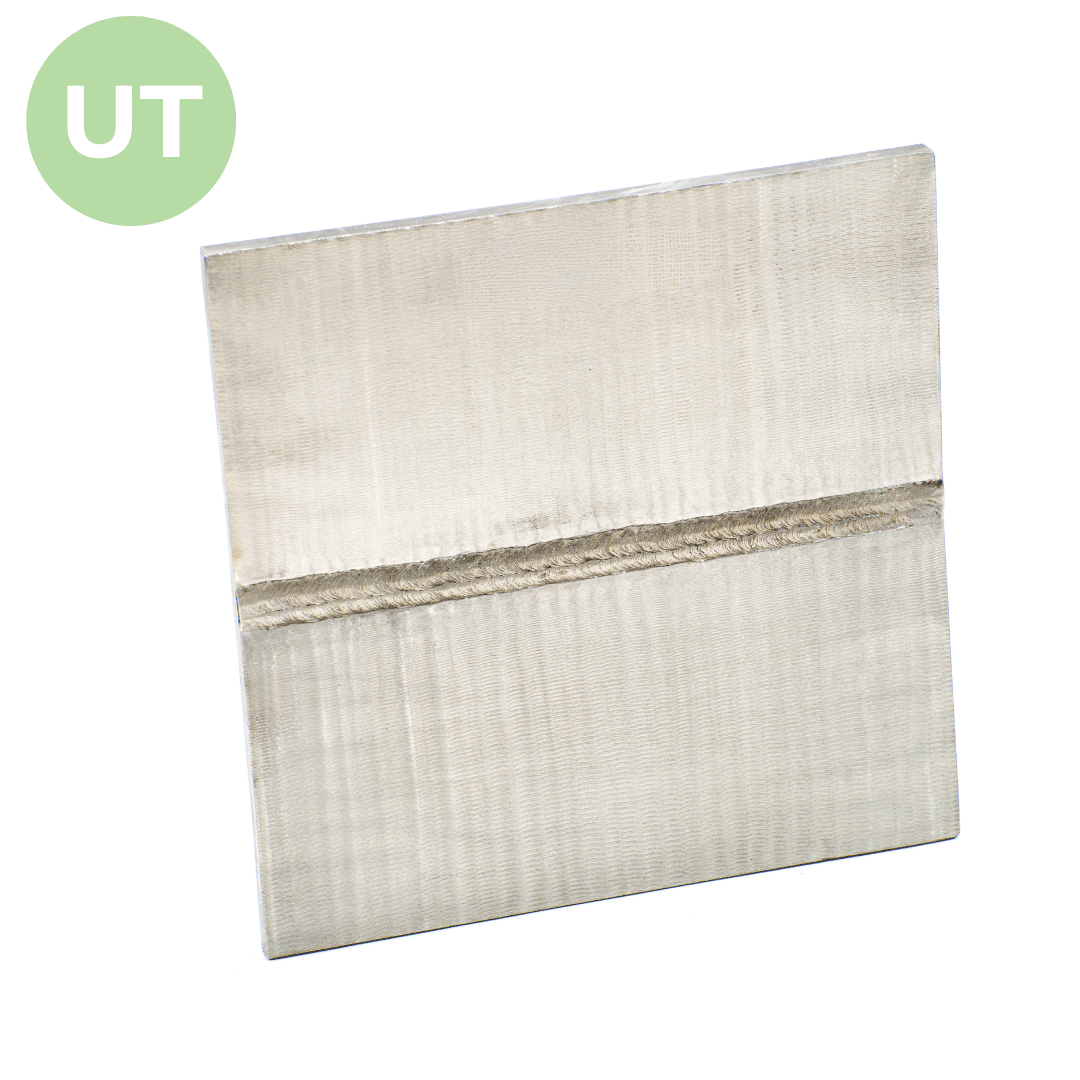

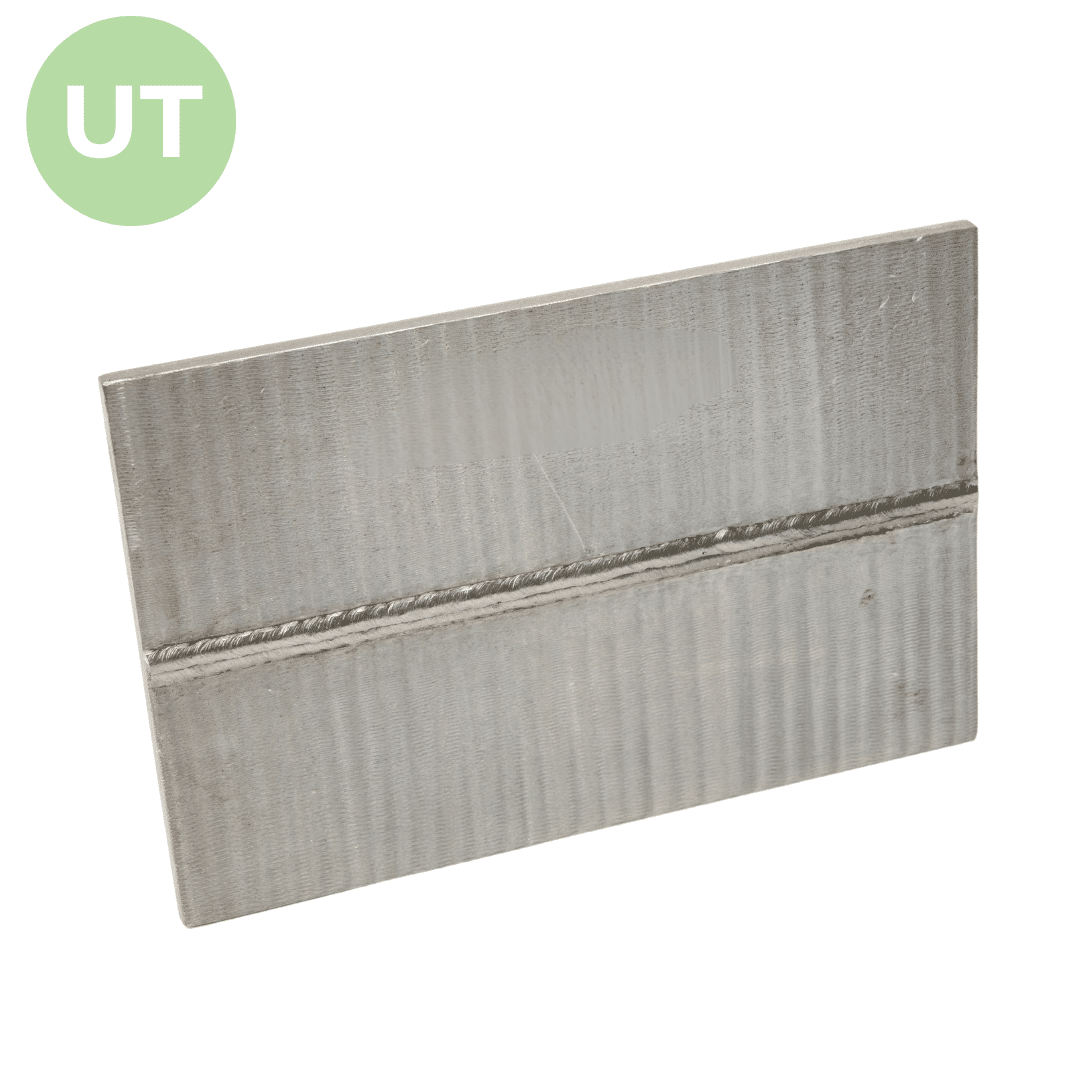

Flawed plate specimen designed and manufactured to meet the requirements of all known internationally recognized qualification programs, such as ASNT SNT-TC-1A, ASNT 9712, API and BS EN ISO 9712 (PCN).

Each specimen contains two to four different flaw types.

Recommended for:

Advanced training and practice prior to qualifications in flaw detection, sizing, interpretation
Realistic size welds
Common weld geometries

Each specimen is:

Uniquely numbered
Supplied with NDE reports
Supplied with acceptance/rejection criteria

Material

Size

Clear

Specification

Specification

Product dimension and weight	12” long x 12” width x ¼” WT SV (4 kg / 9lbs) 12” long x 12” width x ½” WT SV (8 kg / 18 lbs) 12” long x 16” width x 1” WT SV (23 kg / 51lbs) 12” long x 12” width x ¾” WT DV (14 kg / 31lbs) 12” long x 16” width x 1” WT DV (23 kg / 51lbs) 12” long x 17¼” width x 1¼” WT DV (31 kg / 68lbs)
Material	Carbon steel
Method	Ultrasonic testing
Custom specimen designs, material types and flaw locations are available. Secure specimens for examinations also available, please contact us for more details.
