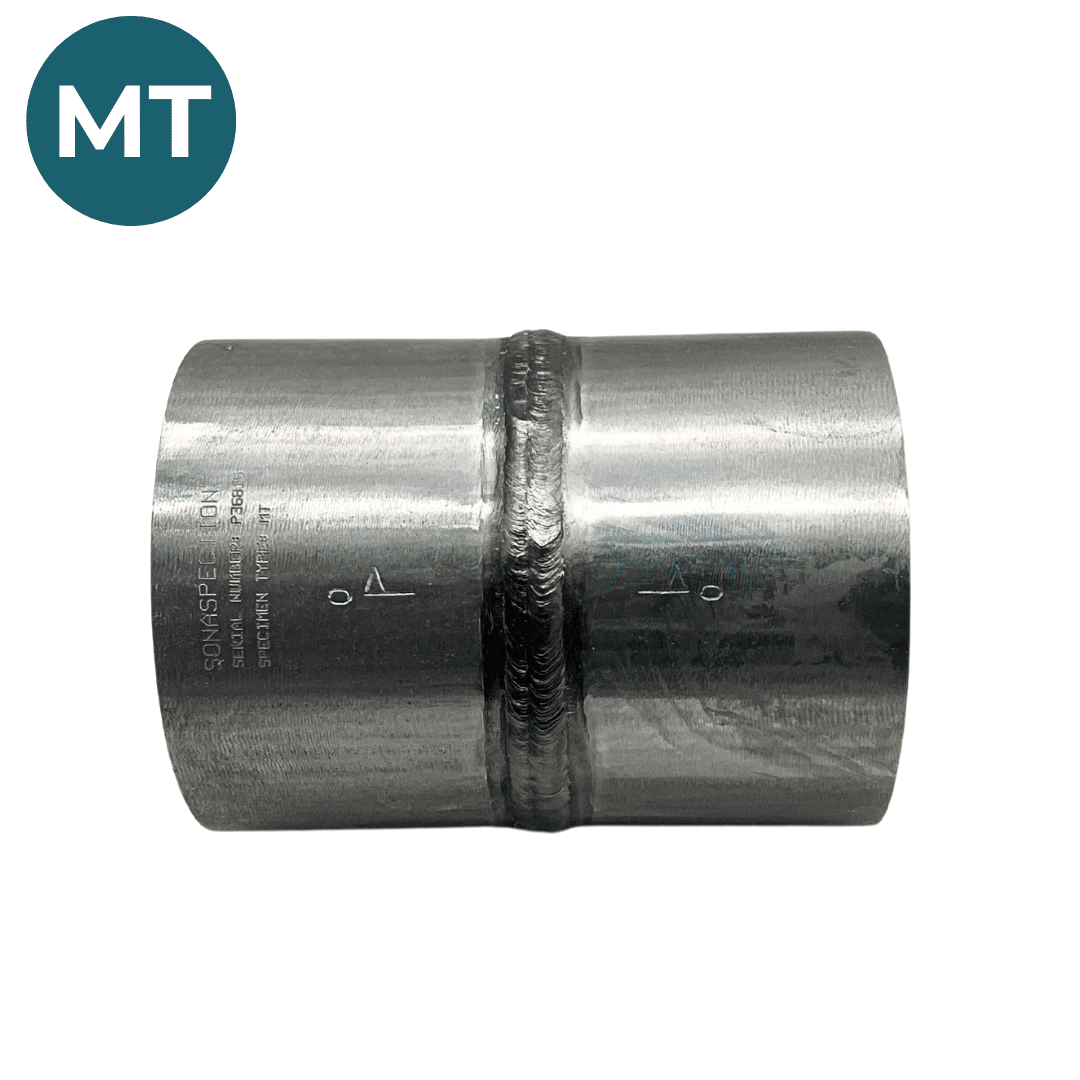

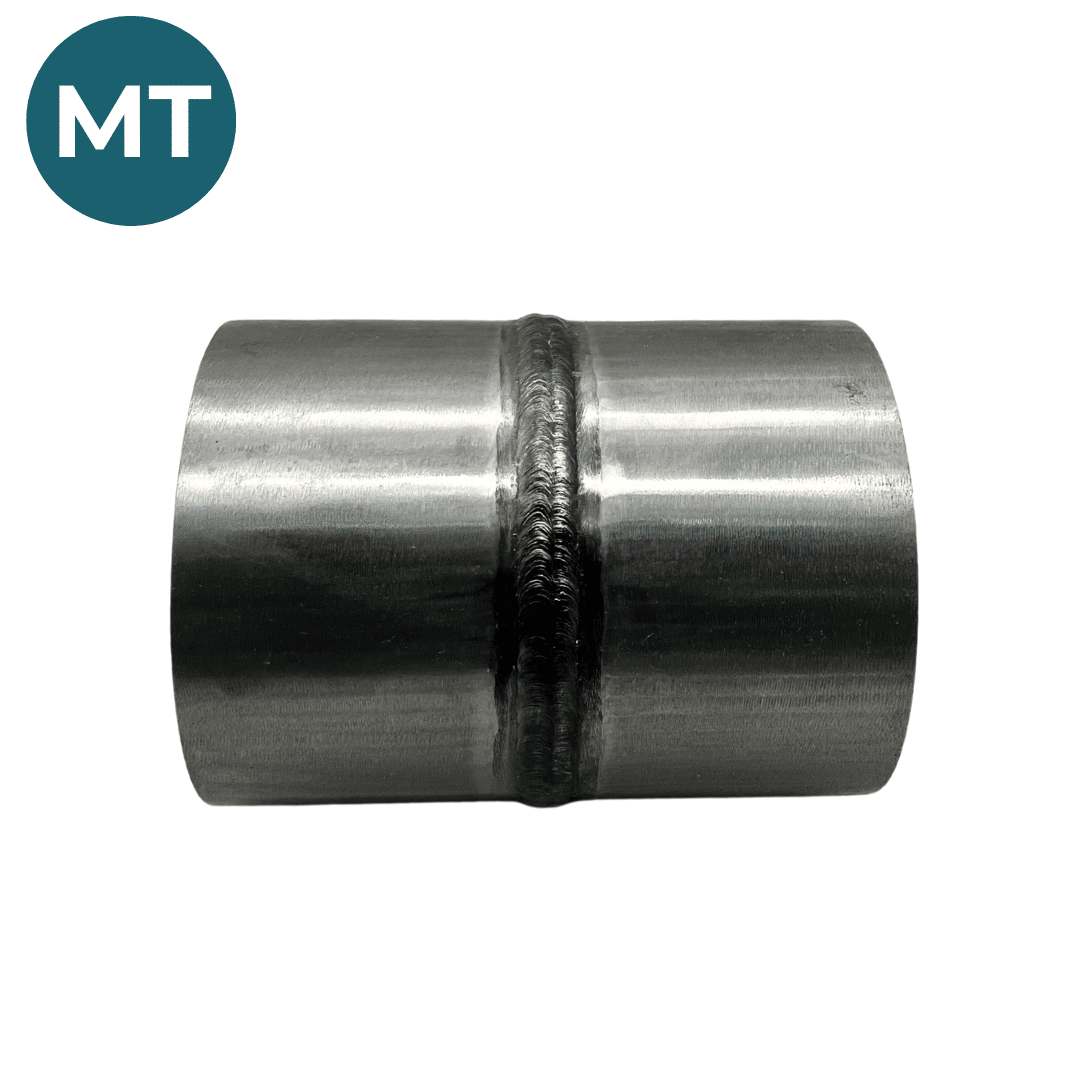

Magnetic particle testing – Pipe

Flawed pipe specimen designed and manufactured to meet the requirements of all known internationally recognized qualification programs, such as ASNT, ACCP, API and BS EN ISO 9712.

Each specimen contains two to four different flaw types.

Recommended for:

  • Advanced training and practice prior to qualifications in flaw detection, sizing, interpretation
  • Realistic size welds
  • Common weld geometries

Each specimen is:

  • Uniquely numbered
  • Supplied with NDE reports
  • Supplied with acceptance/rejection criteria




Magnetic particle testing – Pipe



Product dimension

3” Dia x 3/8” WT SV x 8” long

6” Dia x 3/8” WT SV x 8” long

8” Dia x 3/8” WT SV x 8” long

12” Dia x 3/8” WT SV 8” long



4 kg / 9 lbs

8 kg / 17 lbs

10 kg / 21 lbs

22 kg / 48 lbs


Carbon steel


Magnetic particle testing

Custom specimen designs, material types and flaw locations are available. Secure specimens for examinations also available, please contact us for more details.
