Magnetic particle testing – Recommended set

Set of 7 individual advanced weld flawed specimens, designed and manufactured to meet the requirements of all known internationally recognized qualification programs, such as ASNT, ACCP, API and BS EN ISO 9712.

Each specimen within the set is uniquely numbered and contains two to four different flaw types.

Recommended for:

  • Advanced training and practice prior to qualifications in flaw detection, sizing, interpretation
  • Realistic size welds
  • Common weld geometries

Each set contains:

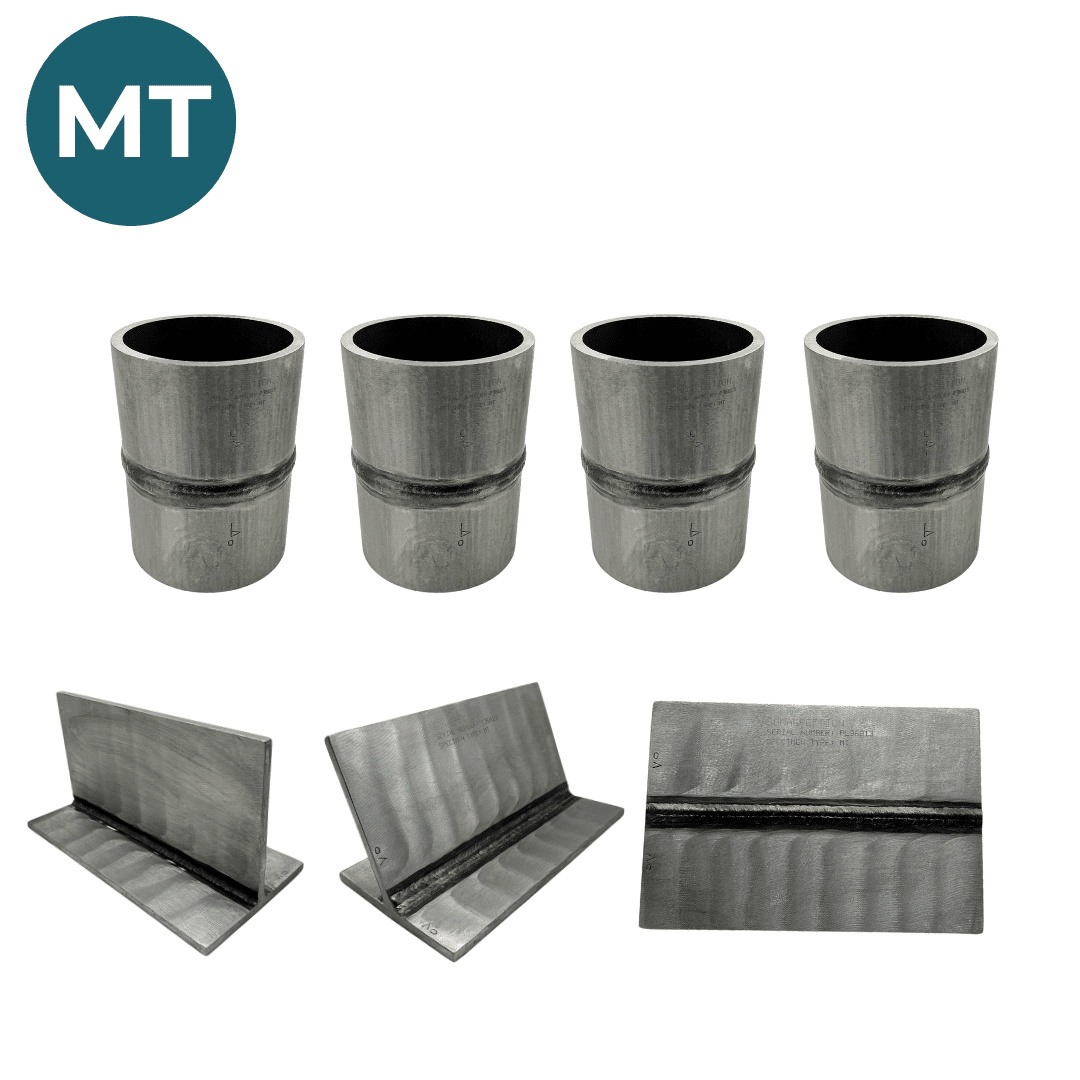

  • 1 plate, 4 pipes, 1 tee and 1 Y
  • NDE reports
  • Acceptance/rejection criteria

You save 5% compared to purchasing each specimen individually!

, mc-12-cs


Magnetic particle testing – Recommended set



Product dimension

1 Plate: 12” long x 8” width x 3/8” WT SV

2 Pipe: 6” Dia. x 3/8” WT x 8” long

2 Pipe: 12” Dia. x 3/8” WT x 8” long

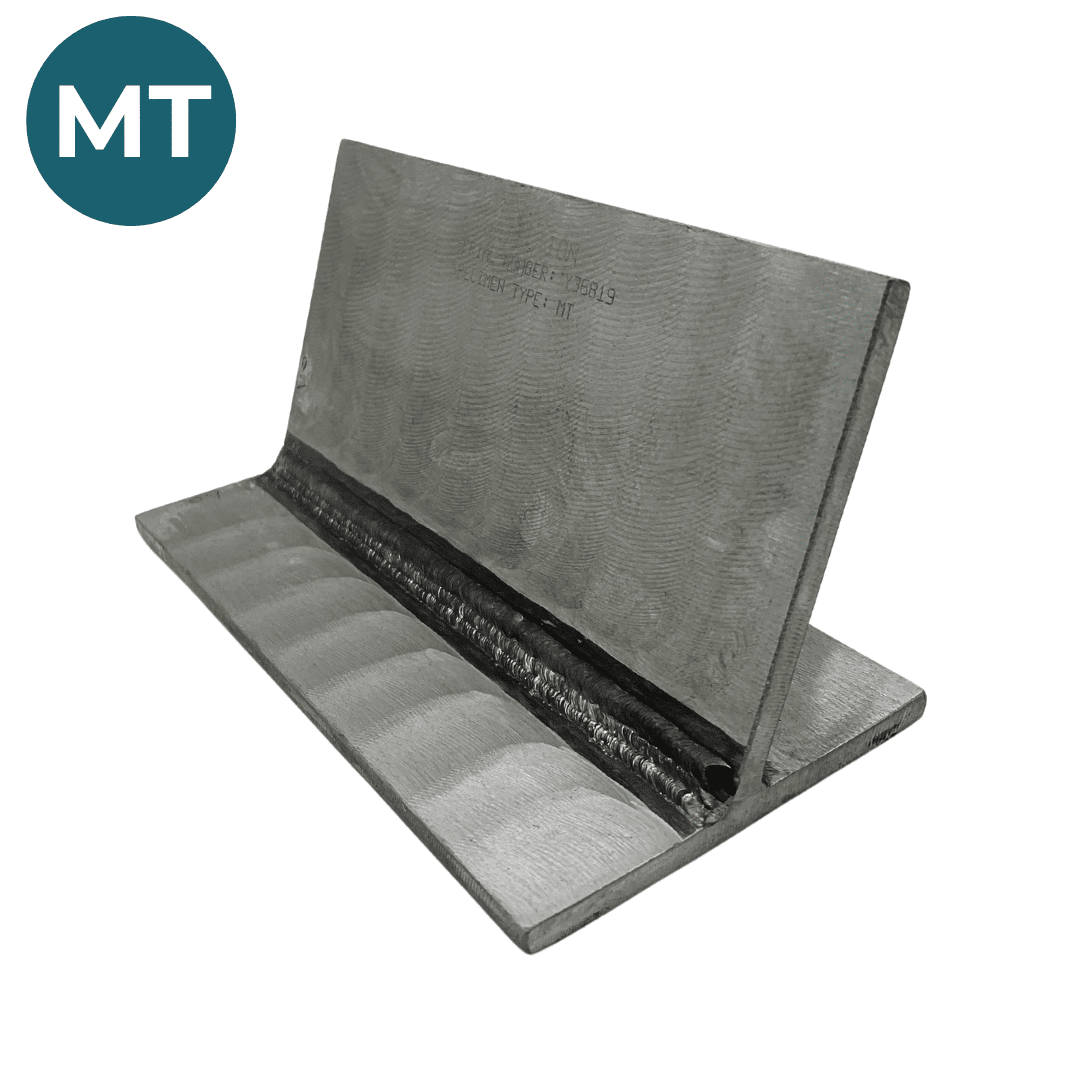

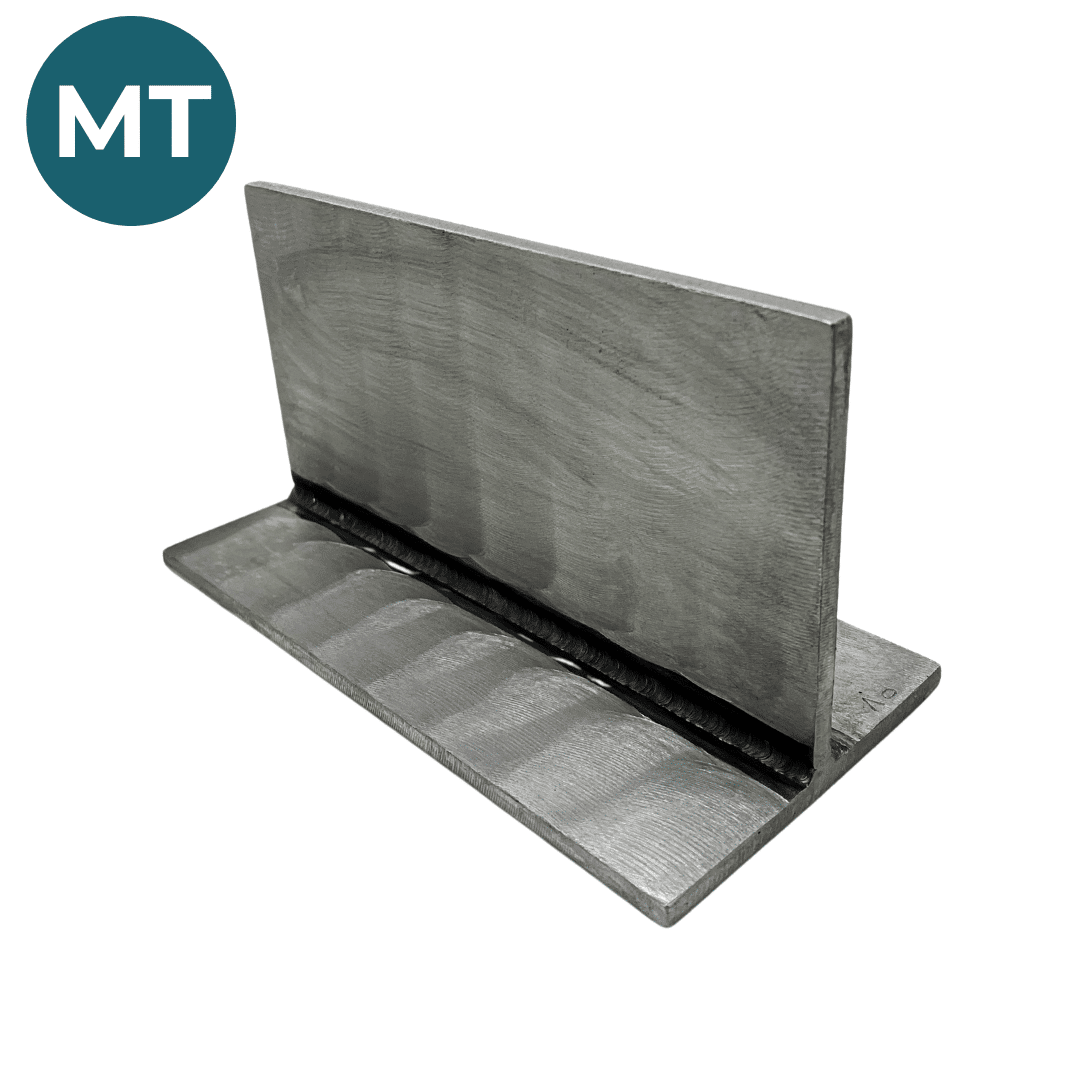

1 Tee: 6” x 6” x 12” x 3/8” WT SV

1 Y: 6” x 6” x 12” x 3/8” WT SV

Total set weight 70kg / 155 lbs
Material Carbon steel
Method  Magnetic particle testing

All sets can be customized to include the individual specimens of your choice, custom specimen designs, material types and flaw locations. Secure specimens for examinations also available. Please contact us for more details.
