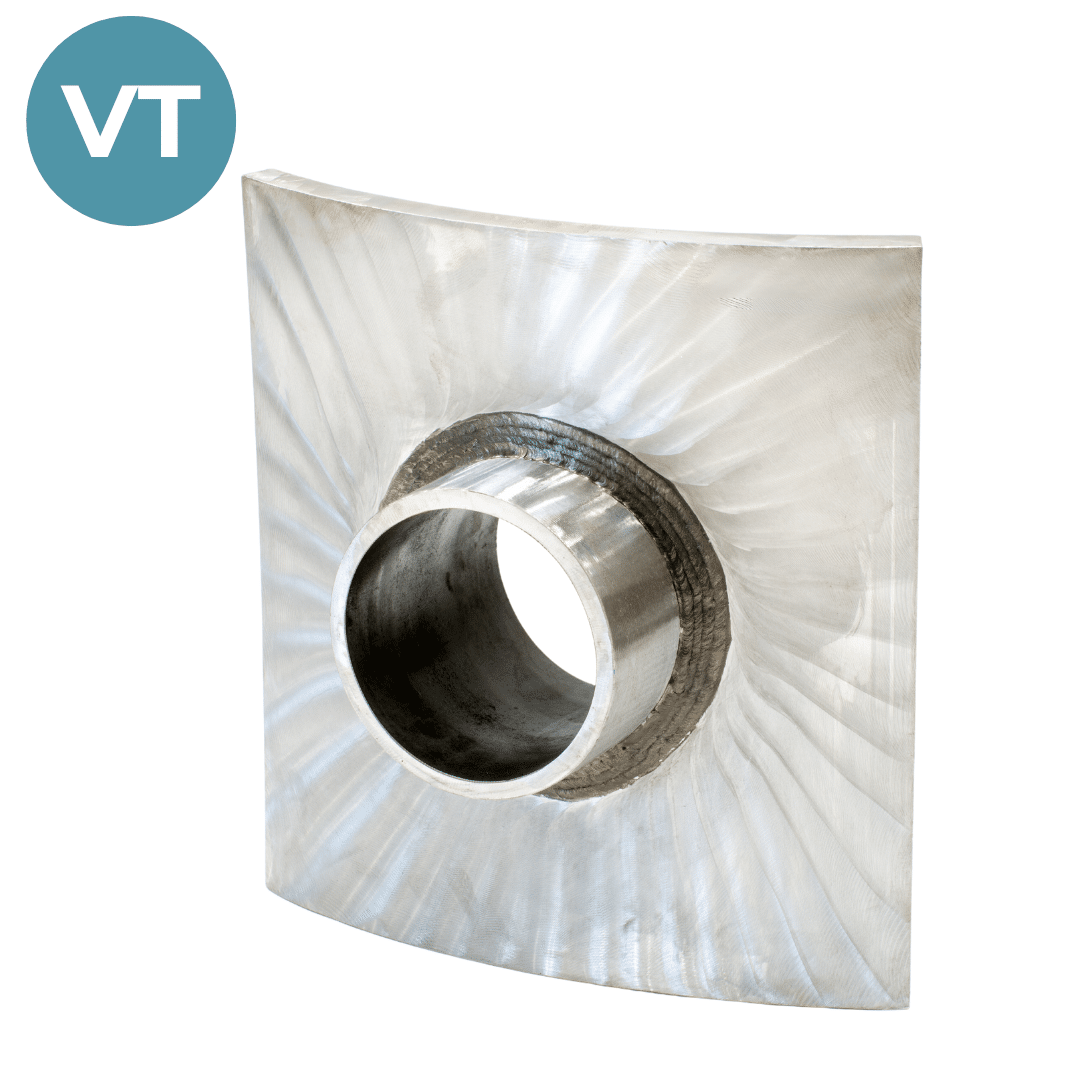

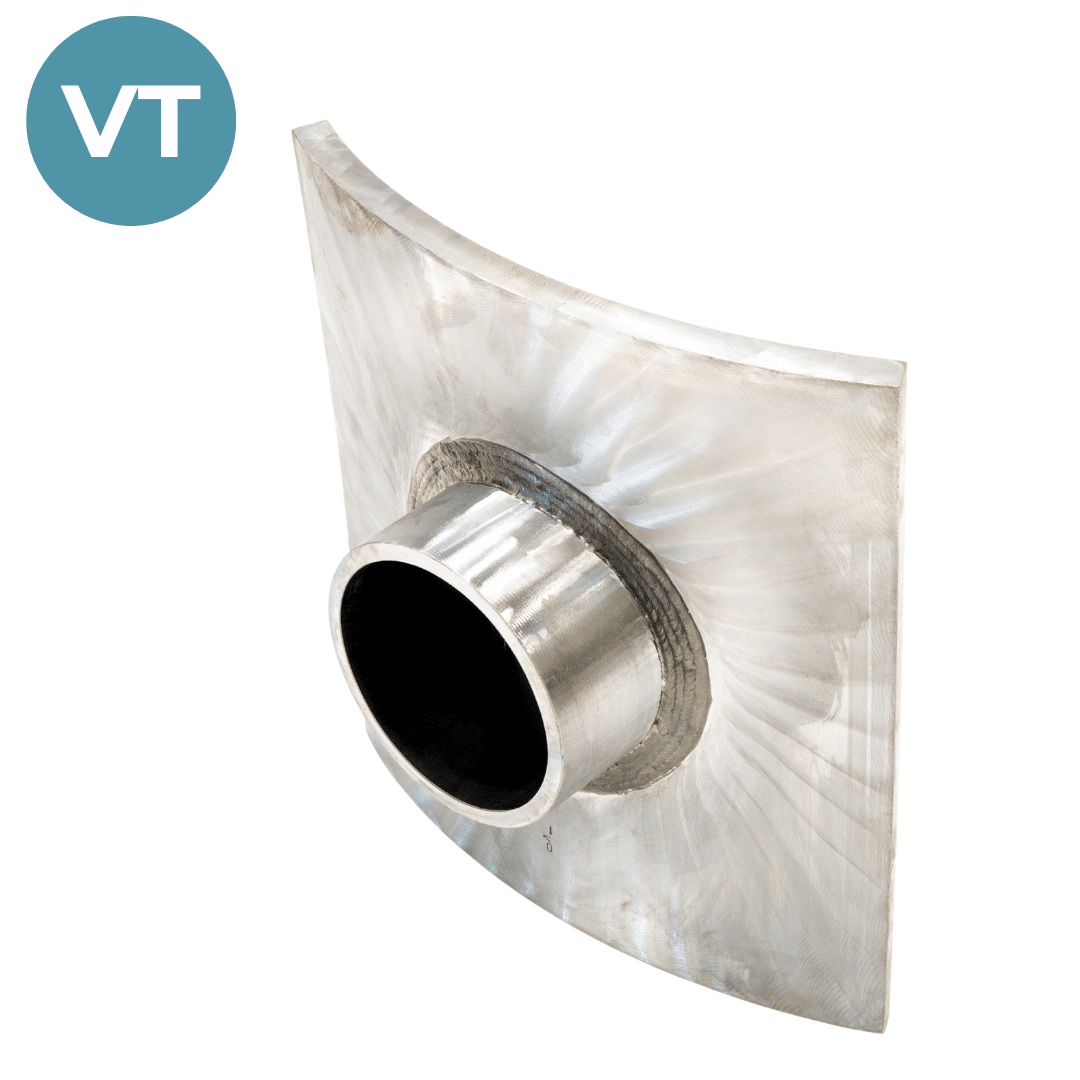

Visual testing – Nozzle

$1,540.00 – $1,695.00

Flawed nozzle specimen designed and manufactured to meet the requirements of all known internationally recognized qualification programs, such as ASNT SNT-TC-1A, ASNT 9712, API and BS EN ISO 9712 (PCN).

Each specimen contains two to four different flaw types.

Recommended for:

Advanced training and practice prior to qualifications in flaw detection, sizing, interpretation
Realistic size welds
Common weld geometries

Each specimen is:

Uniquely numbered
Supplied with NDE reports
Supplied with acceptance/rejection criteria

Material

Size

Clear

Specification

Specification

Product dimension	4” Dia. x 3/8” WT SV – Carrier plate 16” length x 16” width x 1/2” thickness 8” Dia. x 3/8” WT SV – Carrier plate 16” length x 16” width x 1/2” thickness
Weight	17 kg / 38 lbs 22 kg / 49 lbs
Material	Carbon steel
Method	Visual testing
Custom specimen designs, material types and flaw locations are available. Secure specimens for examinations also available, please contact us for more details.
