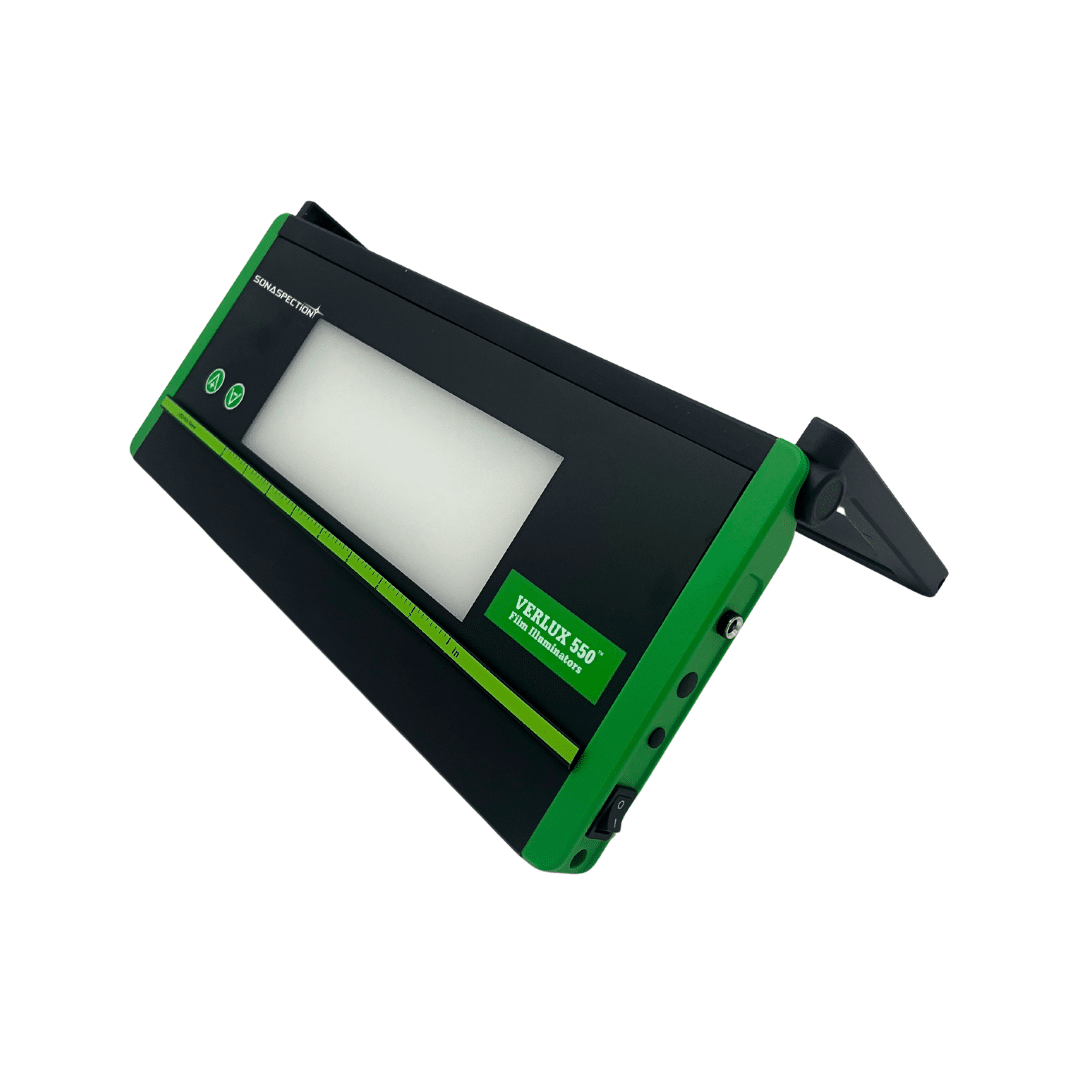

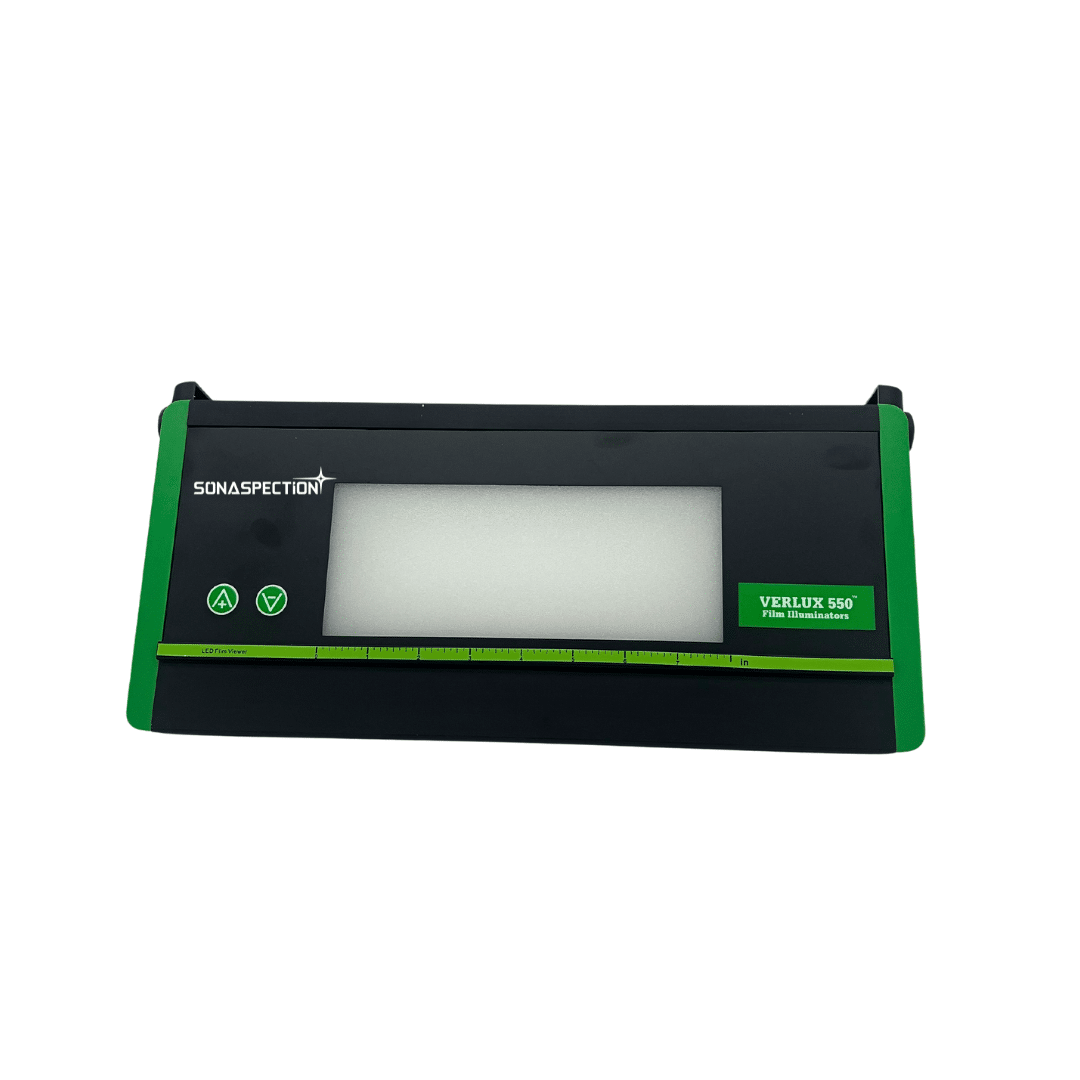

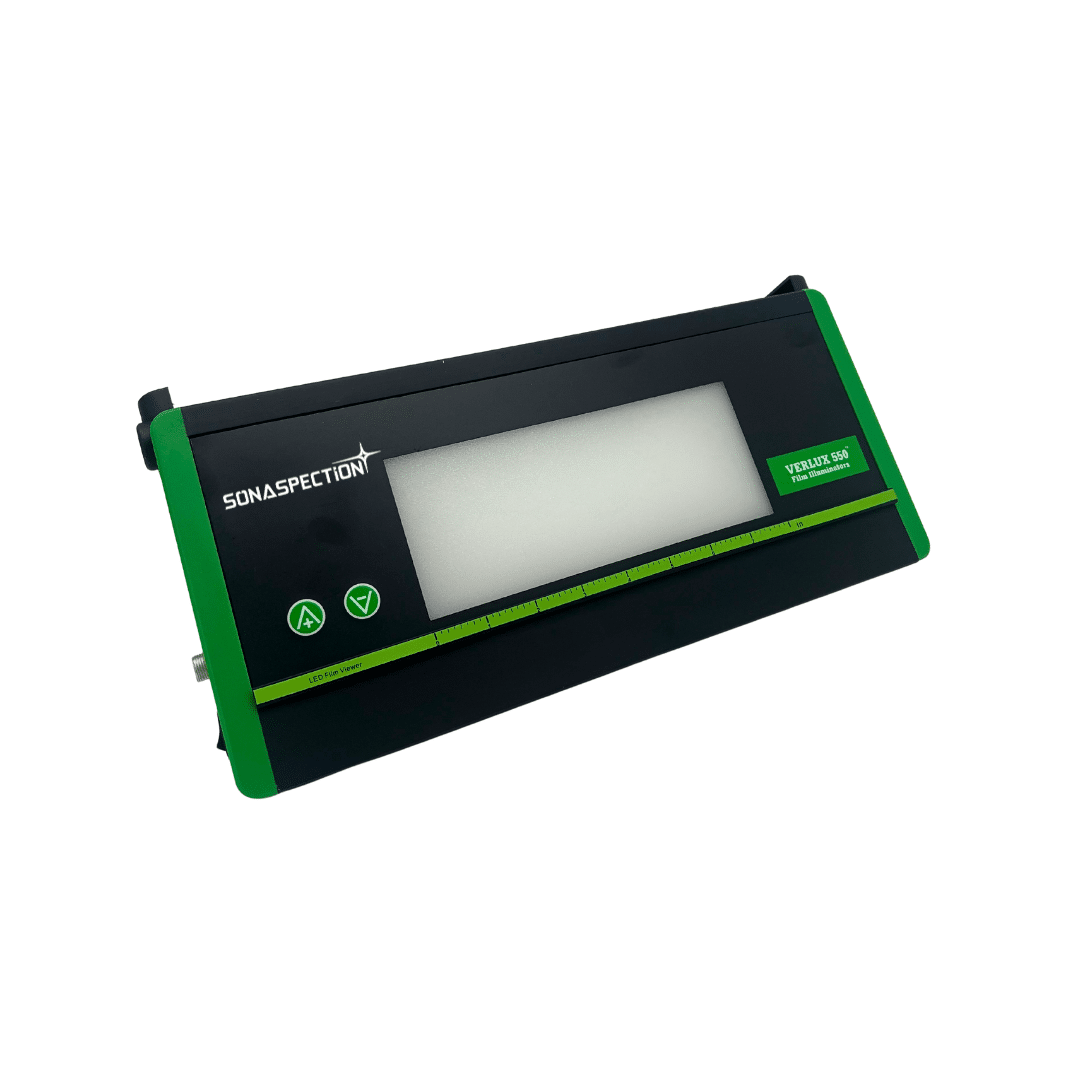

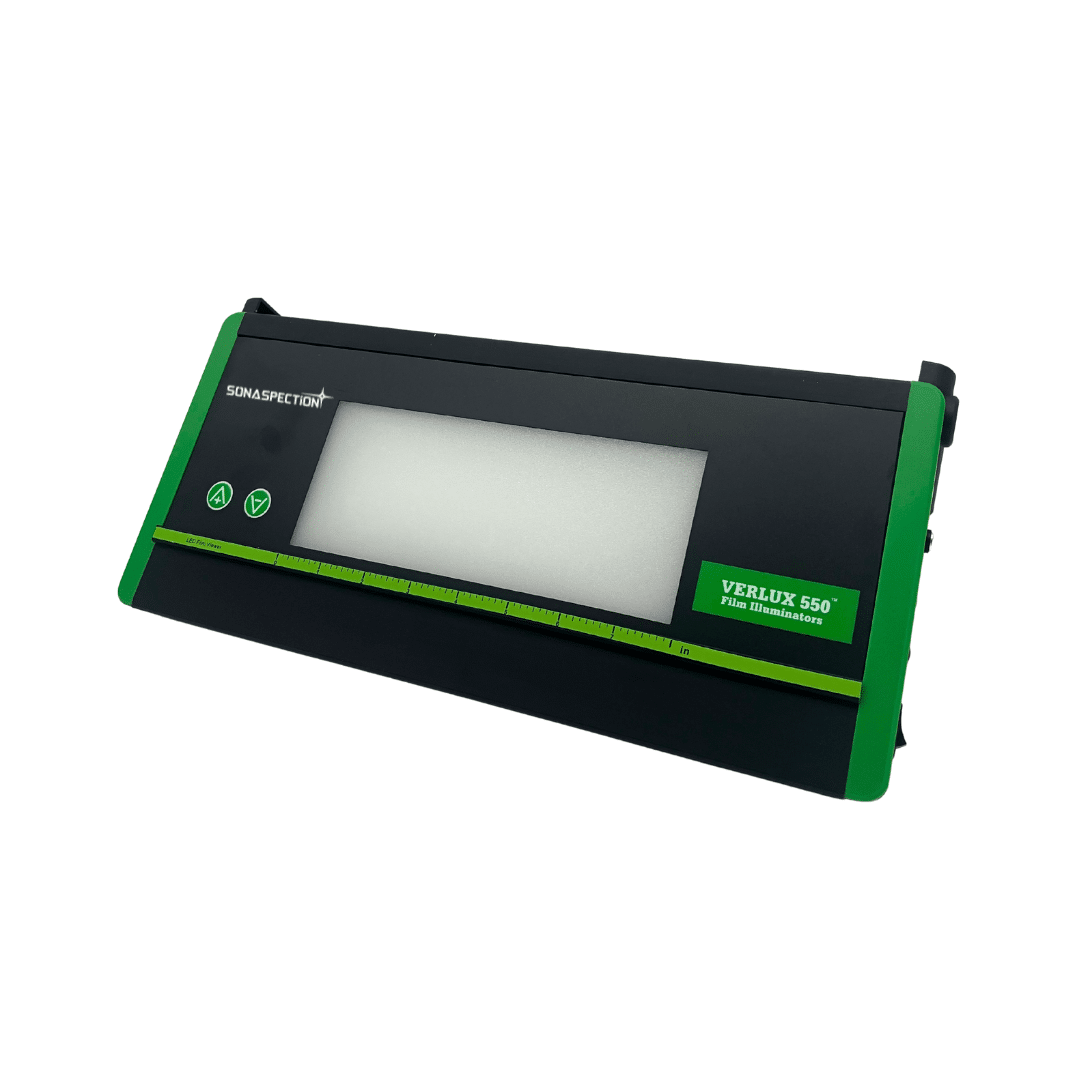

Verlux 550 – Compact 18 LED Film Illuminator

Compact 18 LED illuminator using green LED light for viewing radiographic films.

Verlux 550 uses LED light with a narrow wavelength of 550nm, which is the maximum sensitivity of the human eye. Therefore, when comparing equal intensity of green and white light, the green appears brighter, and makes the radiographs easier to view.

Our illuminators are CE marked and meet the requirements of EN25580: 1992; ASTM E 1390-90 and ISO 5580: 1995. They come with a ten-day unconditional money back guarantee if you are not fully satisfied with the product, in addition to three months’ guarantee.

Key Features:

  • Power: 85-264VAC 47~63Hz (full range)
  • Power consumption: 120W
  • Low heat – will not damage films
  • Low power – energy saving
  • Compact – small and lightweight
  • Safe – sealed and insulated
  • Modern design – stylish and simple
  • A battery-operated option is available on request

Recommended for:

  • Viewing radiographs either in the lab or in the field

Set contents:

  • 1 illuminator with adjustable support handle, foot switch and dimmer control
  • Aluminium / plastic case




Verlux 550 – Compact 18 LED Film Illuminator



Light intensity

Maximum luminance: >100,000 Cd/m2

Density: > 4.0 Density

Uniformity: 0.95

No warm up time

Viewing area 200mm (8”) long x 80mm (3 1/8 ”) width
Product dimension 390mm (15.3”) long x 180mm (7¼  ”) width x 50mm (2”) height
Weight Weight 3kg (6.6lbs)
Method  Radiographic testing
