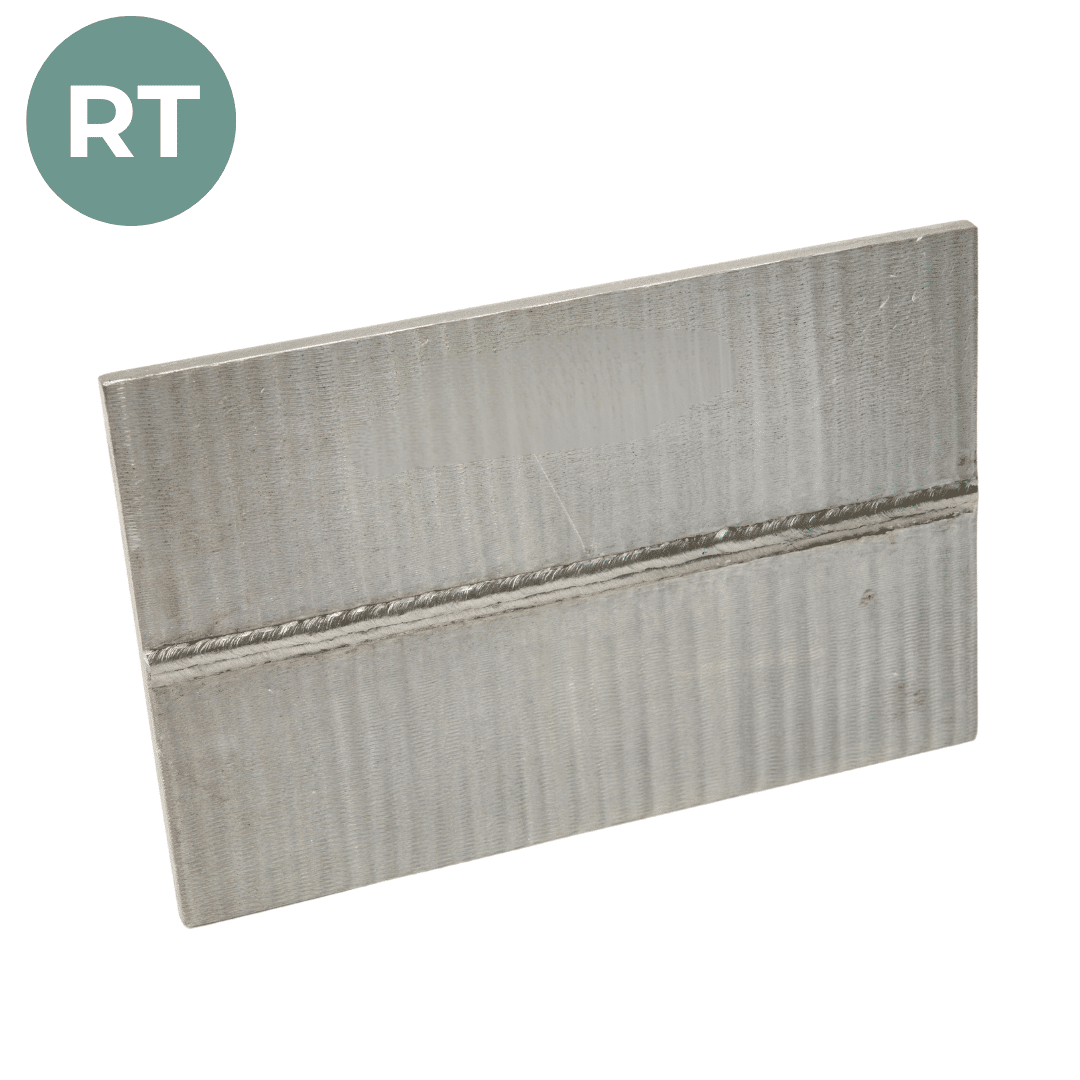

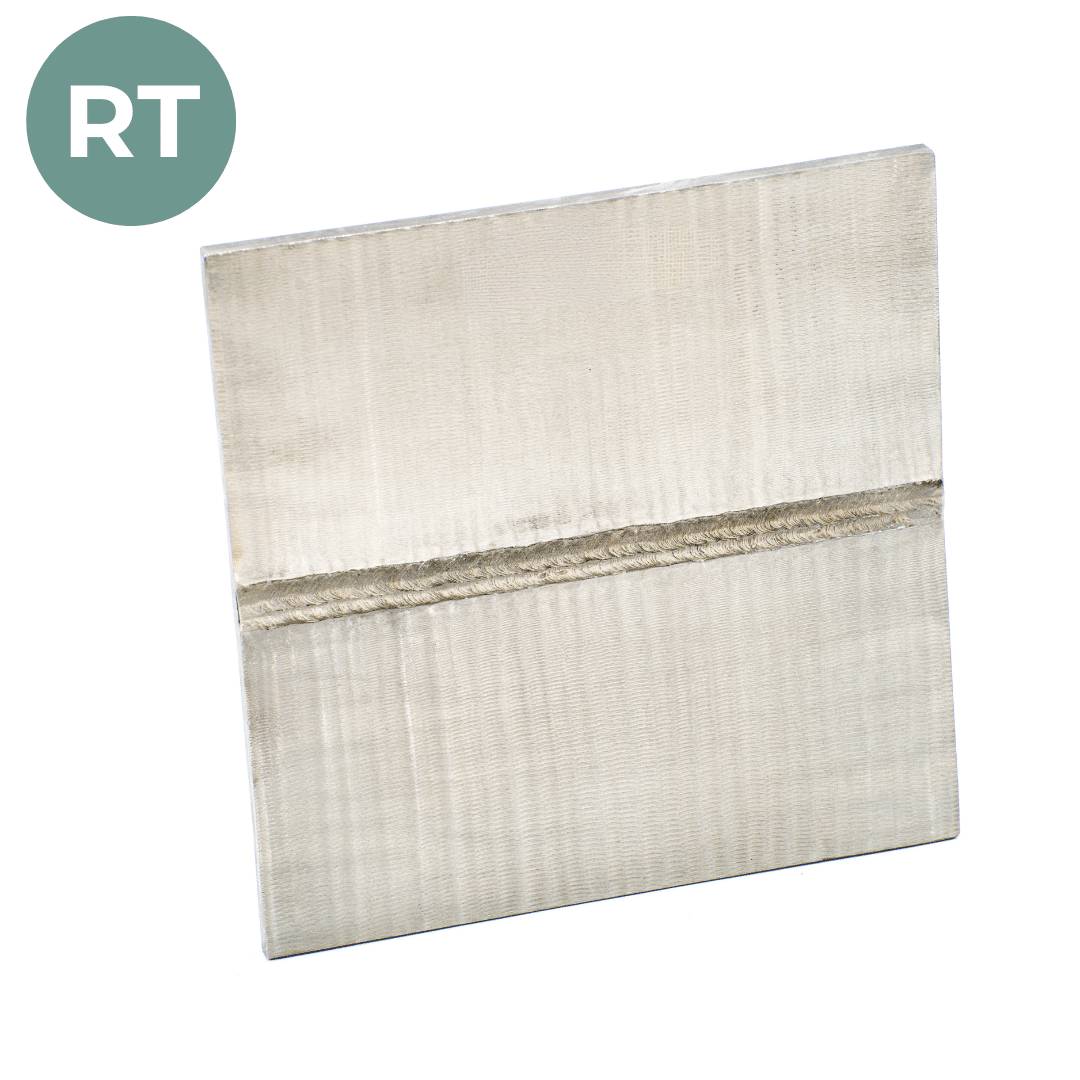

Radiographic testing – Plate

Flawed plate specimen designed and manufactured to meet the requirements of all known internationally recognized qualification programs, such as ASNT, ACCP, API and BS EN ISO 9712.

Each specimen contains two to four different flaw types.

Recommended for:

  • Advanced training and practice prior to qualifications in flaw detection, sizing, interpretation
  • Realistic size welds
  • Common weld geometries

Each specimen is:

  • Uniquely numbered
  • Supplied with NDE reports
  • Supplied with acceptance/rejection criteria



rc-50

$870.00$1,450.00

Radiographic testing – Plate

$870.00$1,450.00

Specification

Product dimension and Weight

RC-50 – Plate – 12” x 8” x 0.25” WT SV – Weight 6lbs

RC-51 – Plate – 12” x 8” x 0.375” WT SV – Weight 10lbs

RC-52 – Plate – 12” x 8” x 0.625” WT SV – Weight 15lbs

RC-53 – Plate – 12” x 8” x 0.75” WT SV – Weight 21lbs

RC-54 – Plate – 12” x 8” x 1” WT SV – Weight 26lbs

RC-55 – Plate – 15” x 8” x 1.25” WT SV – Weight 31lbs

RC-56 – Plate – 12” x 8” x 0.25” WT DV – Weight 6lbs

RC-57 – Plate – 12” x 8” x 0.375” WT DV – Weight 10lbs

RC-58 – Plate – 12” x 8” x 0.625” WT DV – Weight 15lbs

RC-59 – Plate – 12” x 8” x 0.75” WT DV- Weight 21lbs

RC-60 – Plate – 12” x 8” x 1” WT DV – Weight 26lbs

RC-61 – Plate – 12” x 8” x 1.25” WT DV – Weight 31lbs

Material Carbon steel
Method  Radiographic testing

Custom specimen designs, material types and flaw locations are available. Secure specimens for examinations also available, please contact us for more details.
