Radiographic testing – Pipe

$955.00 – $2,615.00

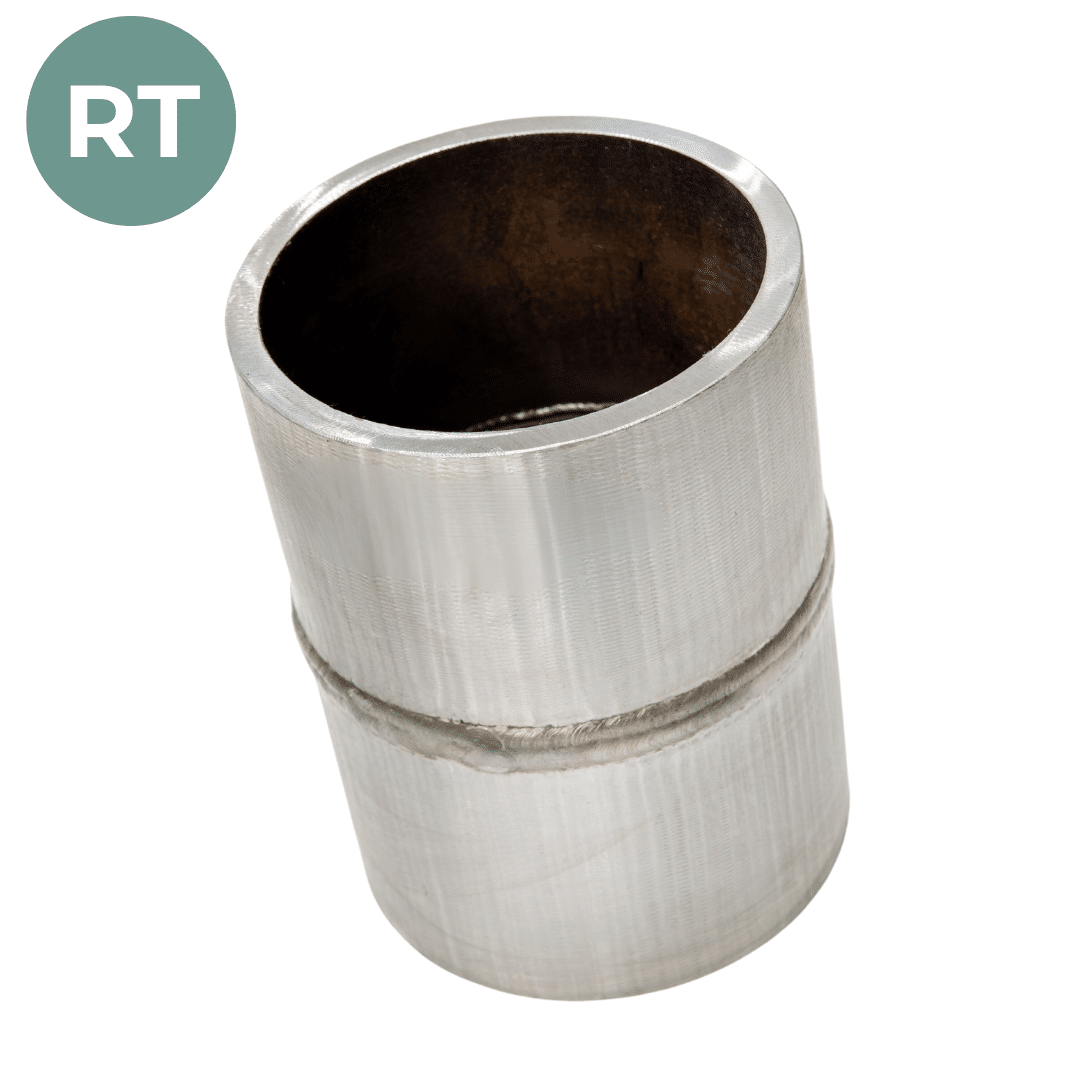

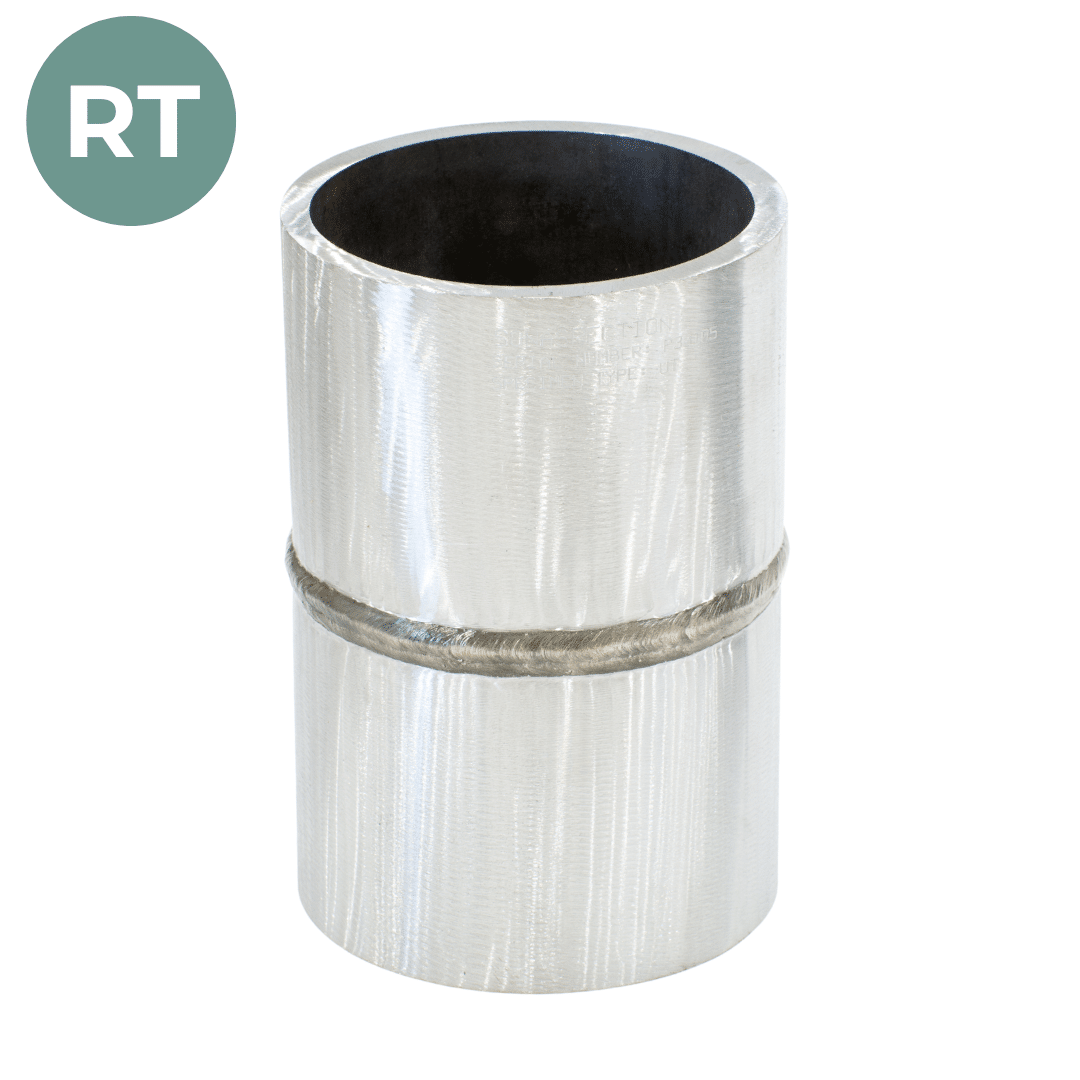

Flawed pipe specimen designed and manufactured to meet the requirements of all known internationally recognized qualification programs, such as ASNT SNT-TC-1A, ASNT 9712, API and BS EN ISO 9712 (PCN).

Each specimen contains two to four different flaw types.

Recommended for:

Advanced training and practice prior to qualifications in flaw detection, sizing, interpretation
Realistic size welds
Common weld geometries

Each specimen is:

Uniquely numbered
Supplied with NDE reports
Supplied with acceptance/rejection criteria

Material

Size

Clear

Specification

Specification

Product dimension and weight	1” Dia. x 1/8” WT x 8” long (0.3 kg / 0.7 lbs) 2” Dia. x 3/16” WT x 8” long (1 kg / 2 lbs) 3” Dia. x ¼” WT x 8” long (2 kg / 5lbs) 6” Dia. x ¼” WT x 8” long (4 kg / 10 lbs) 6” Dia. x ½” WT x 8” long (8 kg / 18 lbs) 8” Dia. x ½” WT x 8” long (11 kg / 25 lbs) 8” Dia. x ¾” WT x 8” long (18 kg / 40 lbs) 12” Dia. x ¾” WT x 8” long (17 kg / 37 lbs) 12” Dia. x 1” WT x 8” long (33 kg / 74 lbs)
Material	Carbon steel
Method	Radiographic testing
Custom specimen designs, material types and flaw locations are available. Secure specimens for examinations also available, please contact us for more details.
