Penetrant testing – Node

$1,760.00 – $1,930.00

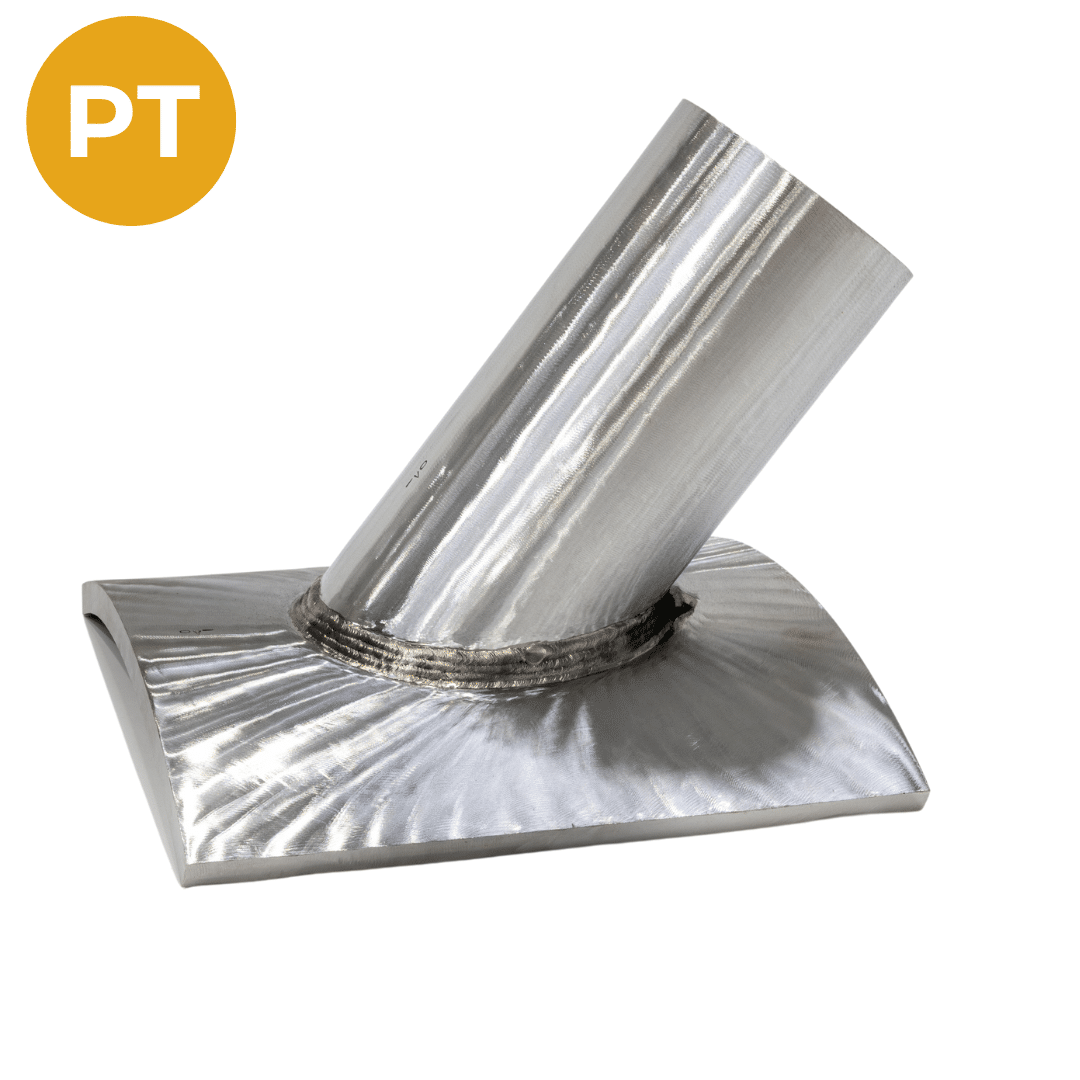

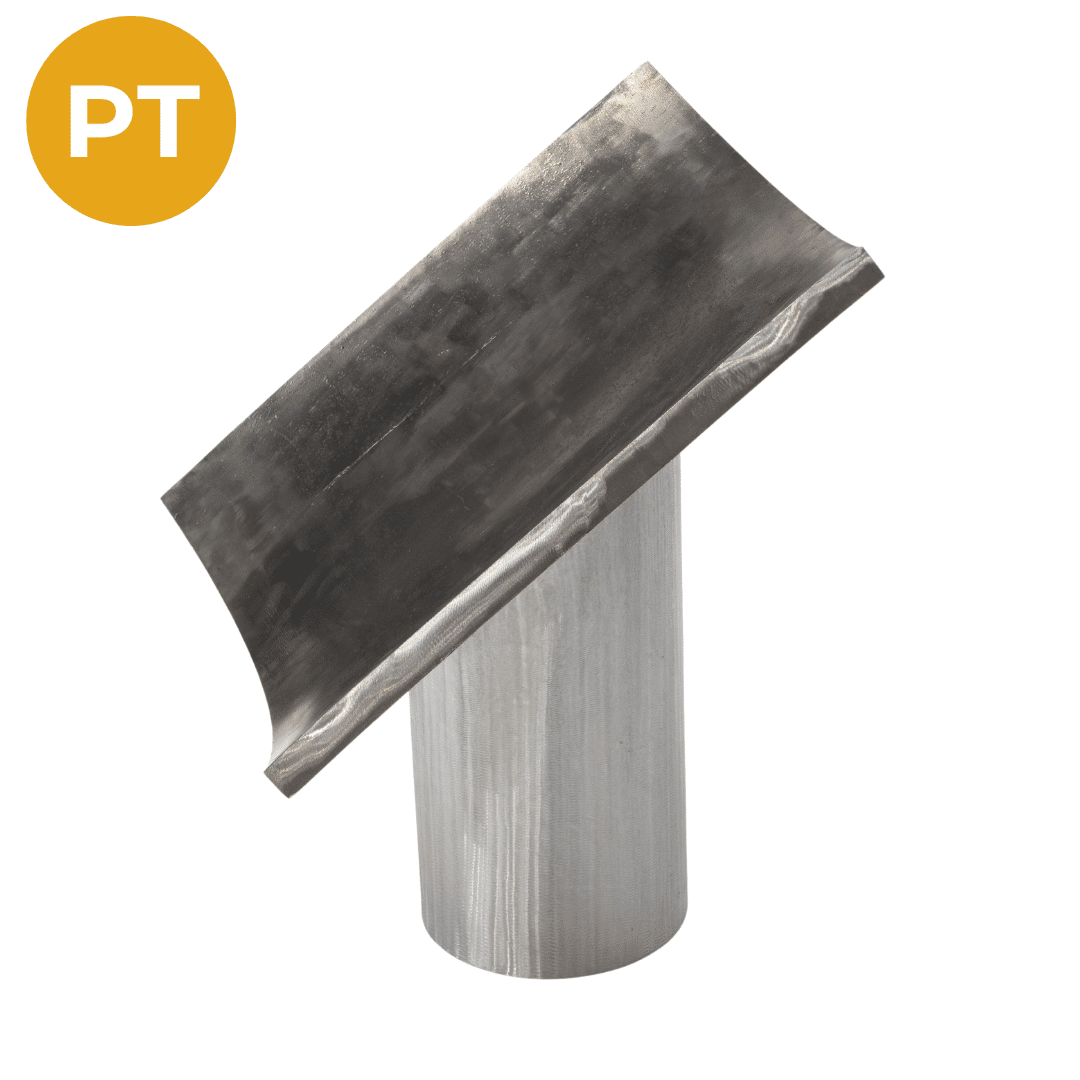

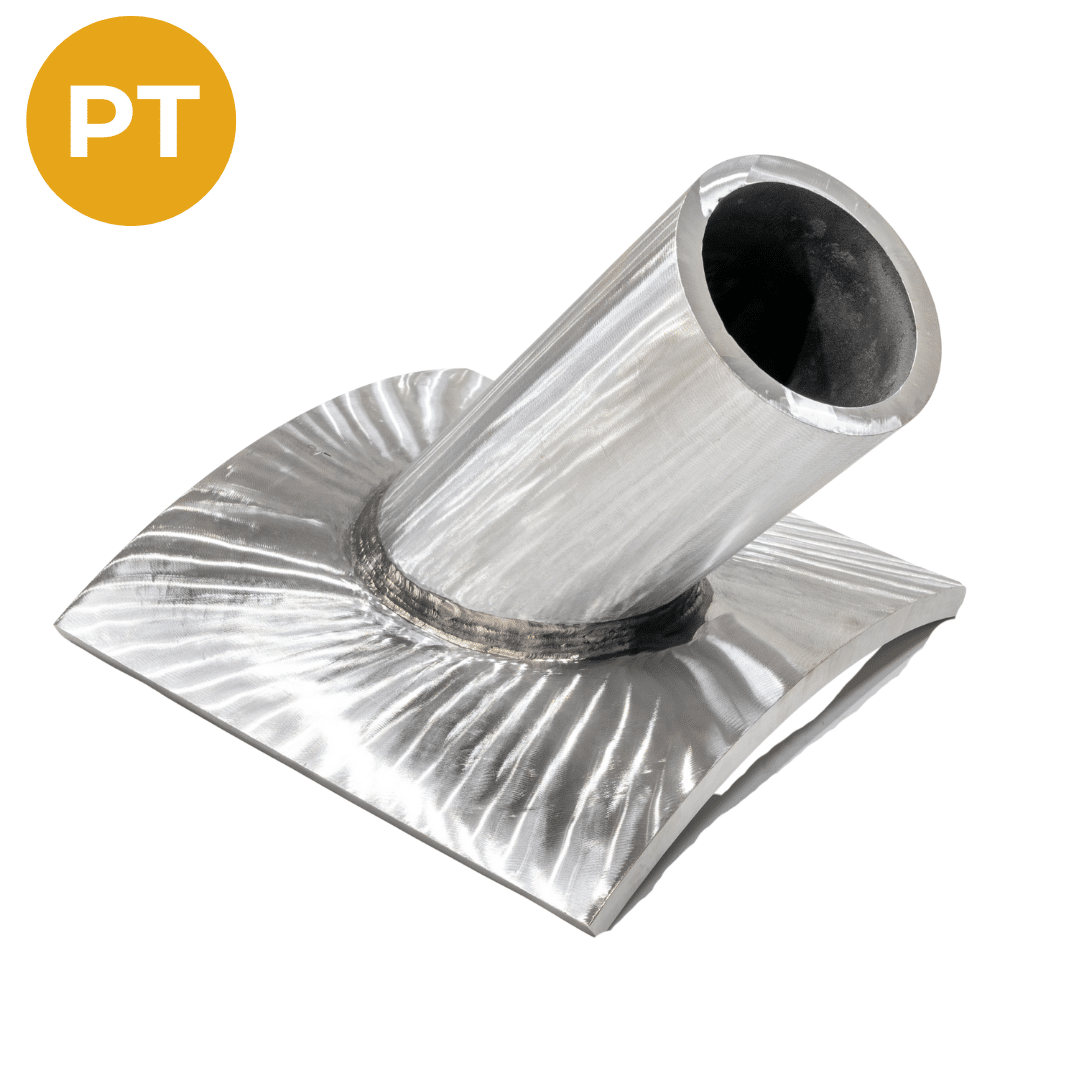

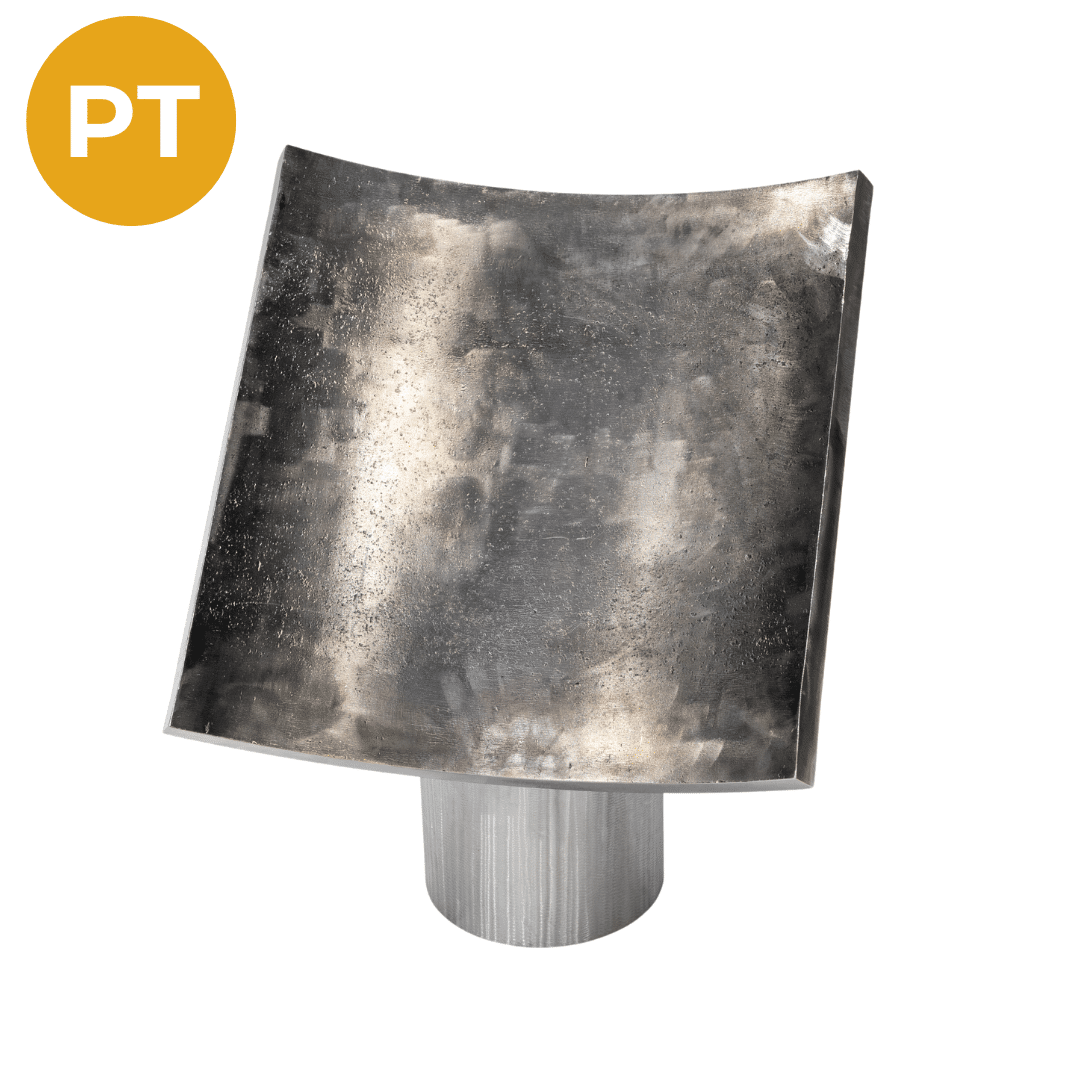

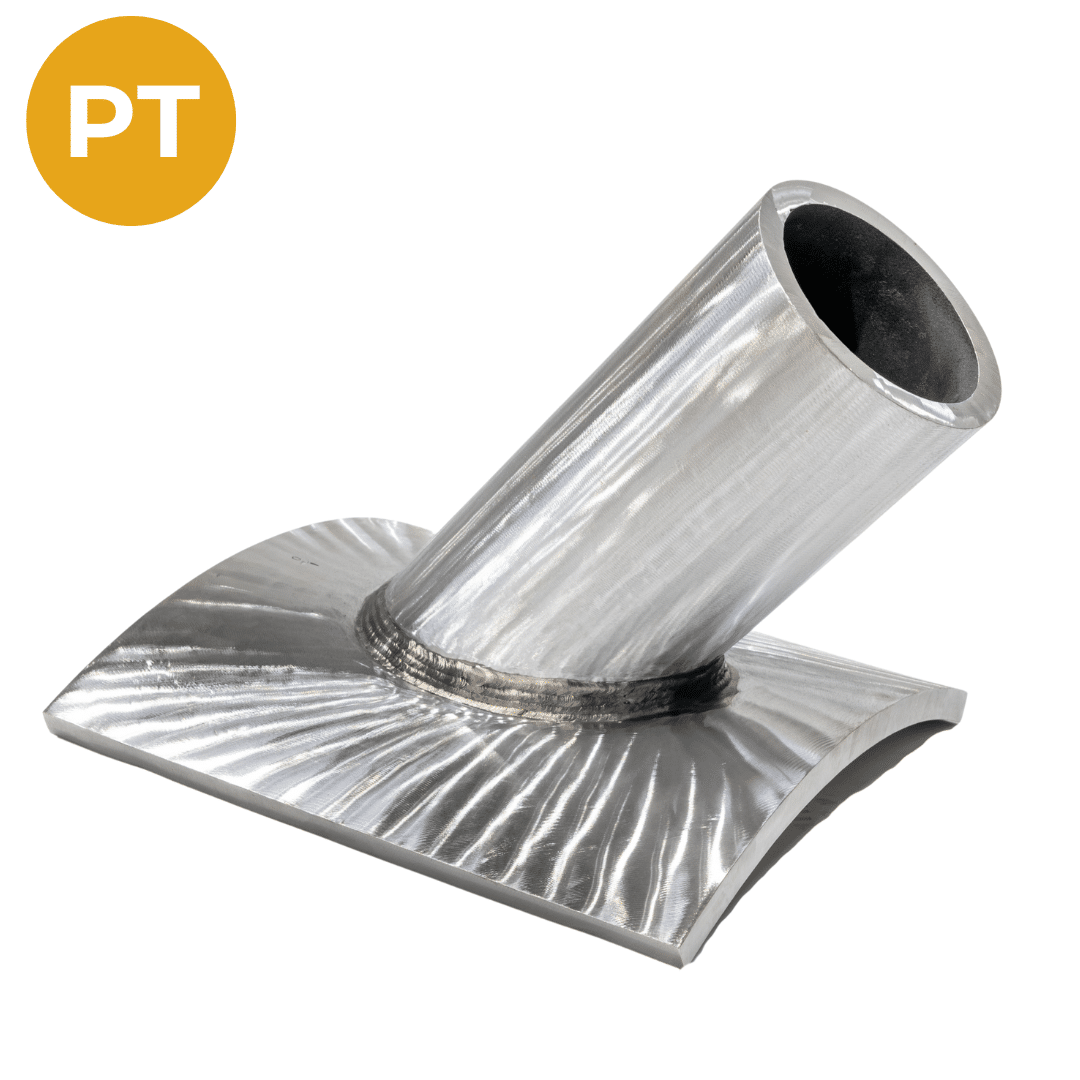

Flawed node specimen designed and manufactured to meet the requirements of all known internationally recognized qualification programs, such as ASNT SNT-TC-1A, ASNT 9712, API and BS EN ISO 9712 (PCN).

Each specimen contains two to four different flaw types.

Recommended for:

Advanced training and practice prior to qualifications in flaw detection, sizing, interpretation
Realistic size welds
Common weld geometries

Each specimen is:

Uniquely numbered
Supplied with NDE reports
Supplied with acceptance/rejection criteria

Material

Size

Clear

Specification

Specification

Product dimension	8” Dia. x 3/8” WT SV – Carrier plate 16” x 16” x ½” 10” Dia. x 3/8” WT SV – Carrier plate 16” x 16” x ½”
Weight	70 lbs 81 lbs
Material	Carbon steel
Method	Penetrant testing
Custom specimen designs, material types and flaw locations are available. Secure specimens for examinations also available, please contact us for more details.
