Penetrant kit
A set of miniature welds, macro sections and photoradiographs to demonstrate the principles of flaw detection, flaw interpretation and basic sizing.
Each kit contains 3 tee and 7 plate specimens containing a selection of commonly occurring surface breaking flaws.
All kits are presented in a durable polypropylene carry case with high-density foam inserts to ensure total protection of the specimens.
Recommended for:
- Introduction to weld flaws
- Demonstration of principles of flaw detection, typical flaw responses and principles of flaw responses
- Basic flaw sizing
Each kit contains:
- 10 miniature flawed specimens, each implanted with one flaw
- Flaw location details
- Testing and acceptance criteria
- Photo-radiographs (where applicable) for each specimen
- 10 macro sections
- Magnifying glass
- Certificate of conformance
$2,465.00 – $3,455.00
Specification
Product dimension | 450mm (18”) × 360mm (14”) × 180mm (7”) |
Weight | 12 kg / 26 lbs (Carbon and stainless steel) 7 kg / 15 lbs (Aluminium) |
Material | Carbon steel, Stainless steel, Aluminium |
Method | Penetrant testing |
Related Products
-
Select options This product has multiple variants. The options may be chosen on the product page

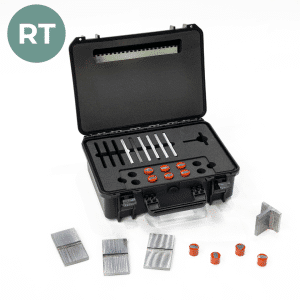

Radiographic kit
