Erosion and corrosion set
A set of 10 small, lightweight, and convenient to handle weld specimens, each containing either 1 or 2 commonly occurring erosion and corrosion flaws including lamination and pitting, with a minimum of 18 flaws per set.

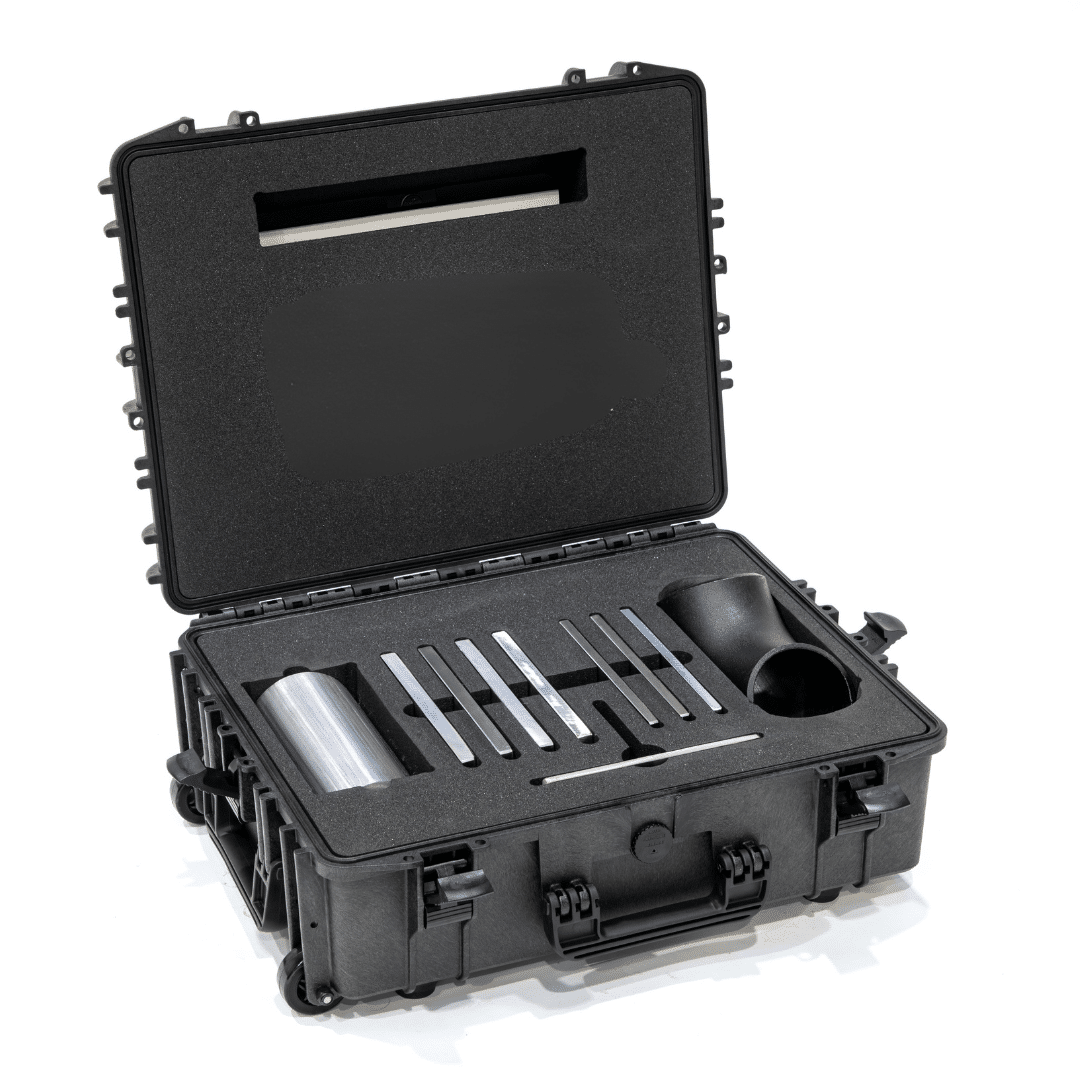

Designed for practical training, each set contains 8 plate, 1 pipe and 1 elbow specimens. It is presented in a durable polypropylene carry case with high-density foam inserts to ensure total protection of the specimens.
Recommended for:
- Introduction to basic flaw detection, sizing and interpretation
- Understanding simple weld geometries
Each set contains:
- 10 small, flawed specimens
- An average of 18 real flaws
- Flaw location details
- Testing and acceptance criteria
- Certificate of conformance
- Drawing / NDE Report(s) showing overall size, flaw type/size/location
$2,735.00
Specification
Product dimension | 4 Plate: 4″ x 8″ x 3/8″ WT 4 Plate: 4″ x 8″ x 5/8″ WT 1 Pipe: 4” Dia x 3/8” WT x 8” 1 Elbow: 3 ½” Sch. 80 (4” Dia x ¼” WT) |
Weight | 32 kg / 71 lbs |
Material | Carbon steel |
Method | Ultrasonic testing |
Custom specimen designs, material types and flaw locations are available, please contact us for more details.
| |
