Demonstration set
A set of 10 small, lightweight, and convenient to handle weld specimens, each containing either 1 or 2 commonly occurring surface-breaking and weld-body flaws, with a minimum of 18 flaws per set.

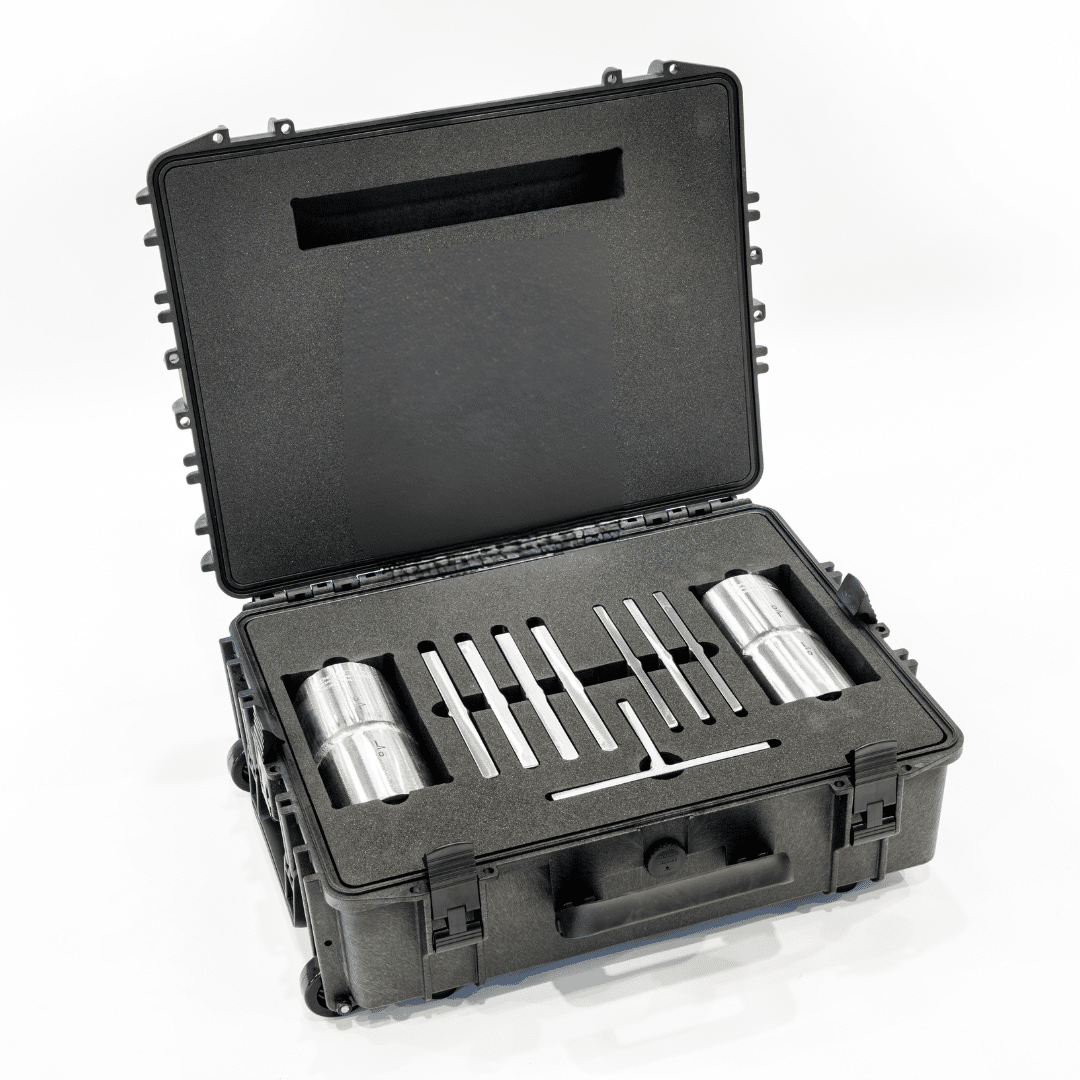

Designed for practical training, each set contains 7 plate, 1 tee and 2 pipe specimens carefully selected from the visual, magnetic, penetrant, ultrasonic and radiographic sets to provide an overview of flaw types and their detection using various non-destructive testing techniques. It is presented in a durable polypropylene carry case with high-density foam inserts to ensure total protection of the specimens.
Recommended for:
- Introduction to basic flaw detection, sizing and interpretation
- Understanding simple weld geometries
Each set contains:
- 10 small, flawed specimens
- An average of 18 real flaws
- Flaw location details
- Testing and acceptance criteria
- Certificate of conformance
- Drawing / NDE Report(s) showing overall size, flaw type/size/location
$3,370.00
Specification
Product dimension | 3 Plate: 4” x 8” x 3/8” WT SV 3 Plate: 4” x 8” x 5/8” WT SV 1 Plate: 4” x 8” x 5/8” WT DV 1 Tee: 4” x 8” x 3/8” WT SV 2 Pipe: 4” Dia. x 3/8” WT x 8” |
Weight | 35 kg / 77 lbs |
Material | Carbon steel |
Method | Multi-method |
Custom specimen designs and flaw locations are available, please contact us for more details.
| |
