Demonstration kit
A set of miniature welds, macro sections and photo-radiographs to demonstrate the principles of flaw detection, flaw interpretation and basic sizing.
Each kit contains 1 tee and 9 plate specimens carefully selected from the visual, magnetic, penetrant, ultrasonic, and radiographic kits.
All kits are presented in a durable polypropylene carry case with high-density foam inserts to ensure total protection of the specimens.
Recommended for:
- Introduction to weld flaws
- Demonstration of principles of flaw detection, typical flaw responses and principles of flaw responses
- Basic flaw sizing
Each kit contains:
- 10 miniature flawed specimens, each implanted with one commonly occurring surface-breaking or weld-body flaw
- Flaw location details
- Testing and acceptance criteria
- Photo-radiographs (where applicable) for each specimen
- 10 macro sections
- Magnifying glass
- Certificate of conformance
$2,655.00
Specification
Product dimension | 450mm (18”) × 360mm (14”) × 180mm (7”) |
Weight | 12 kg / 26 lbs |
Material | Carbon steel |
Method | Multi-method |
Related Products
-
Select options This product has multiple variants. The options may be chosen on the product page
Radiographic kit
$2,900.00 – $4,300.00 -
Select options This product has multiple variants. The options may be chosen on the product page
Magnetic particle kit
$2,465.00 -
Select options This product has multiple variants. The options may be chosen on the product page

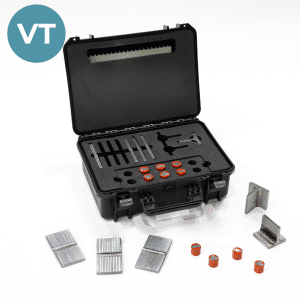

Visual kit
$1,399.00 – $2,465.00 -
Select options This product has multiple variants. The options may be chosen on the product page

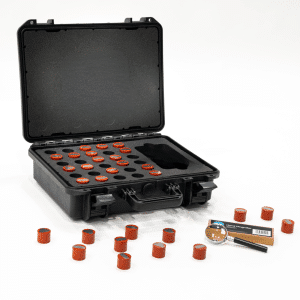

Weld flaw identification kit
